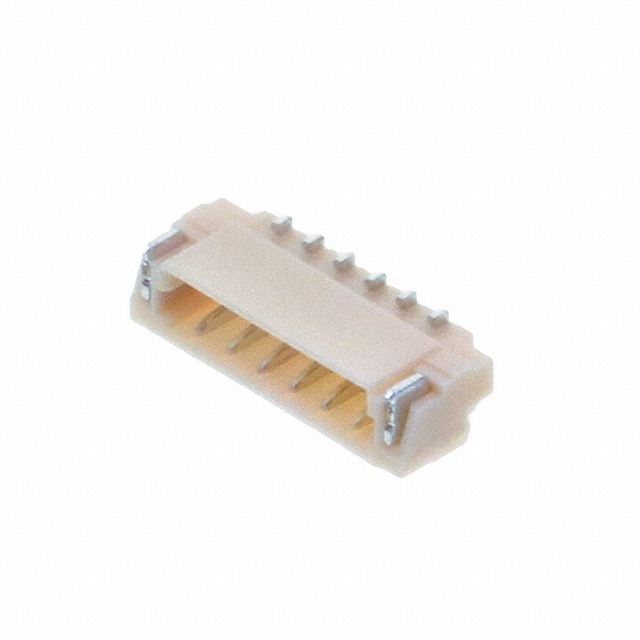

Same model may have multiple batches, images only for reference.

SM06B-SURS-TF

Name: SM06B-SURS-TF
Brand: JST Sales America Inc.
SKU: 1481404
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SM06B-SURS-TF
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Connector Header Surface Mount, Right Angle 6 position 0.031" (0.80mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	JST Sales America Inc.
Series	SUR
Packaging	Reel - TR
Connector Type	Header
Contact Type	Outer Shroud Contact
Pitch - Mating	0.031" (0.80mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.069" (1.75mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	0.2A, 0.5A
Voltage Rating	30V
Base Product Number	SM06B-SU
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1481404-SM06B-SURS-TF
Ultra Librarian 3D Model	Ultra Librarian SM06B-SURS-TF CAD Model
