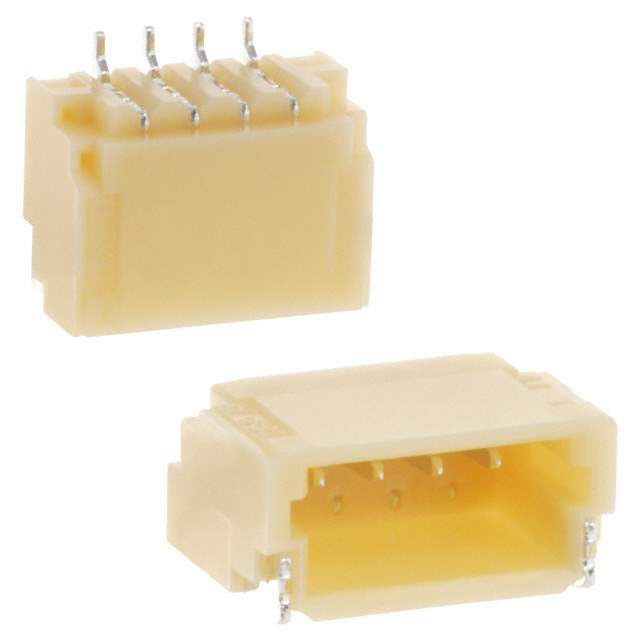

The JST Sales America Inc.'s SM04B-SRSS-TB(LF)(SN) is a connector with a voltage rating of 50V and a current rating of 0.7A.

• Voltage Rating: 50V
• Current Rating: 0.7A
• Packaging: Reel - TR
• Number of Positions: 4
• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions Loaded: All
• Number of Rows: 1
• Termination: Solder
• Fastening Type: Push-Pull
• Material Flammability Rating: UL94 V-0
• Insulation Material: Polyamide (PA), Nylon
• Style: Board to Cable/Wire
• Pitch - Mating: 0.039" (1.00mm)
• Contact Finish - Mating: Tin
• Contact Finish - Post: Tin
• Insulation Color: Natural
• Temperature Range - Operating: -25°C to 85°C
• Shrouding: Shrouded - 4 Wall
• Contact Shape: Square
• Insulation Height: 0.114" (2.90mm)
• Supply and Demand Status: Balanced
