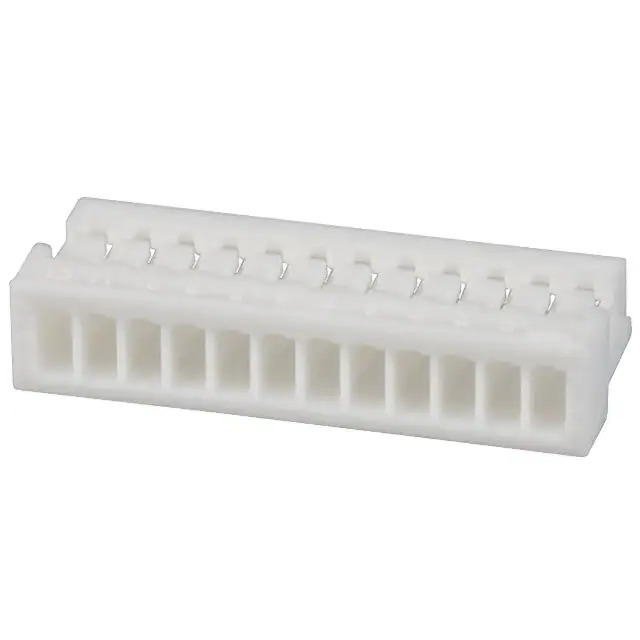

Same model may have multiple batches, images only for reference.

SHR-12V-S

Name: SHR-12V-S
Brand: JST Sales America Inc.
SKU: 1365304
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SHR-12V-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 12POS 1.00MM / 12 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	SH
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch	0.039" (1.00mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	-
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	SHR-12V
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365304-SHR-12V-S
Ultra Librarian 3D Model	Ultra Librarian SHR-12V-S CAD Model

Alternative Products

Description

The 1365304-SHR-12V-S is a rectangular connector housing manufactured by JST Sales America Inc.

Connector Type: Receptacle
Contact Gender: Female Socket
Number of Positions: 12
Pitch: 0.039" (1.00mm)
Mounting Type: Free Hanging (In-Line)
Operating Temperature: -25°C to 85°C
Color: Natural
Series: SH
Packaging: Bulk
Contact Termination: Crimp
Contacts Included: No
HTSUS Code: 8538.90.6000
ECCN: EAR99
