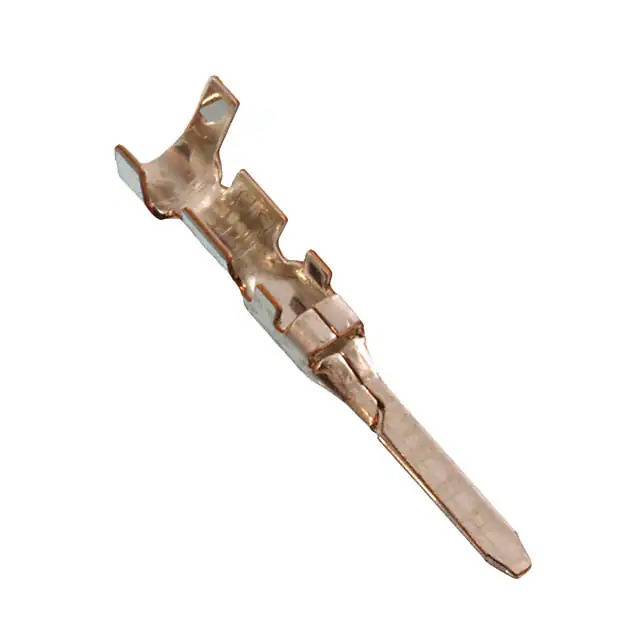

Same model may have multiple batches, images only for reference.
SHIM-01T-P0.5 JST Sales America Inc.
Same model may have multiple batches, images only for reference.

SHIM-01T-P0.5

Part No SHIM-01T-P0.5
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN PIN 20-24AWG CRIMP TIN / Pin Contact Tin 20-24 AWG Crimp
Datasheet
SHIM-01T-P0.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr JST Sales America Inc.
Series HIL
Package Tape & Reel (TR)
Type -
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Finish Tin
Contact Finish Thickness -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362806-SHIM-01T-P0.5
Ultra Librarian 3D Model Ultra Librarian SHIM-01T-P0.5 CAD Model

Description

The HIL series from JST Sales America Inc. offers rectangular connector contacts that are perfect for your electronic projects.

  • Contact Type: Pin
  • Termination: Crimp
  • Wire Gauge: 20-24 AWG
  • Contact Finish: Tin
  • Packaging: Tape & Reel (TR)
  • Series: HIL
  • Manufacturer: JST Sales America Inc.
