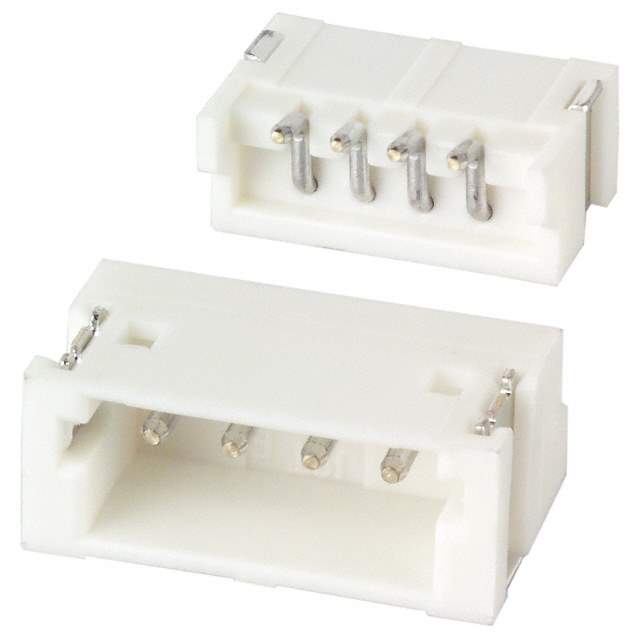

The S4B-ZR-SM4A-TF is a 4-position, 1.5mm pitch, side entry SMT header from JST's ZR series. This header is designed for board-to-wire connections in compact electronic devices. Its small size and surface-mount design make it ideal for high-density applications where space is limited.

Applications

• Consumer electronics (e.g., smartphones, tablets)
• Industrial control equipment
• Medical devices
• Automotive electronics

Features

• Compact size: 1.5mm pitch
• Surface mount technology (SMT)
• Side entry orientation
• Secure locking mechanism
• RoHS compliant

Benefits

• Space-saving design
• Automated assembly
• Reliable connection
• Environmentally friendly

Detailed Specifications

The S4B-ZR-SM4A-TF has 4 contacts and is designed to mate with JST's ZR series crimp style housings and contacts. The housing material is typically a high-temperature resistant resin suitable for reflow soldering processes. The header has a rated current of typically 1A and a voltage rating of 50V AC/DC. The operating temperature range is typically -25°C to +85°C. The locking mechanism ensures a secure connection, preventing accidental disconnections due to vibration or shock.

This JST header provides a reliable and space-efficient solution for connecting wires to PCBs in various electronic applications. Its SMT design allows for automated assembly, reducing manufacturing costs and improving production efficiency. The header's compact size makes it suitable for use in miniaturized devices where board space is at a premium.

The S4B-ZR-SM4A-TF is designed for reflow soldering processes, ensuring a strong and reliable solder joint. Its RoHS compliance ensures that it meets environmental regulations, making it a suitable choice for applications where environmental considerations are important.
