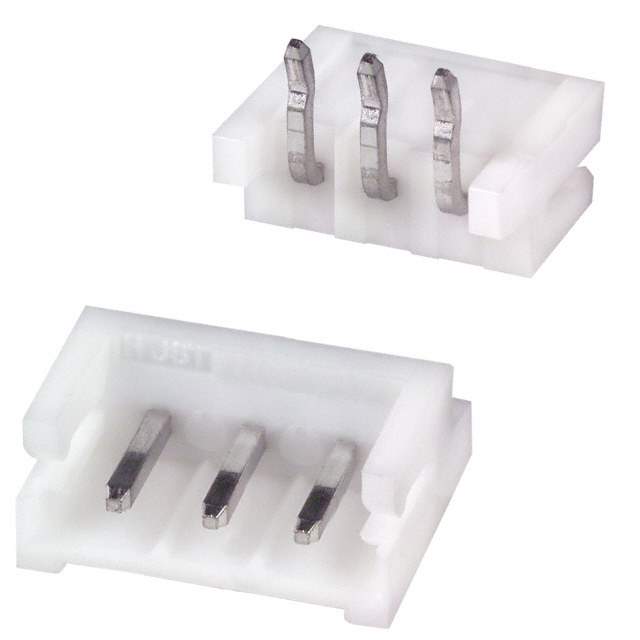

S3B-EH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S3B-EH(LF)(SN)

Part No S3B-EH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER EH SIDE 3POS 2.5MM
Datasheet
S3B-EH(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.50mm
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.165" (4.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 4.2mm
Win Source Part Number 063106-S3B-EH(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Defence, Military & Aerospace
Ultra Librarian 3D Model Ultra Librarian S3B-EH(LF)(SN) CAD Model

Description

The JST Sales America Inc. 063106-S3B-EH(LF)(SN) is a medium popularity electronic component.

  • Popularity: Medium popularity
  • Component Type: Connector
  • Feature: Shrouded 3 wall
  • Function: To connect different electronic circuits
  • Number of Positions: 3
  • Type: Header
  • Contact Gender: Male pin
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting Type: Through Hole, Right Angle
  • Fastening Type: Latch Lock
  • Insulation Material: Polyamide (PA66) and nylon 6/6
  • Insulation Color: Natural
  • Contact Finish: Tin
  • Operating Temperature: -25°C to 85°C
  • Commonly used in: Defence, military and aerospace applications
