Same model may have multiple batches, images only for reference.

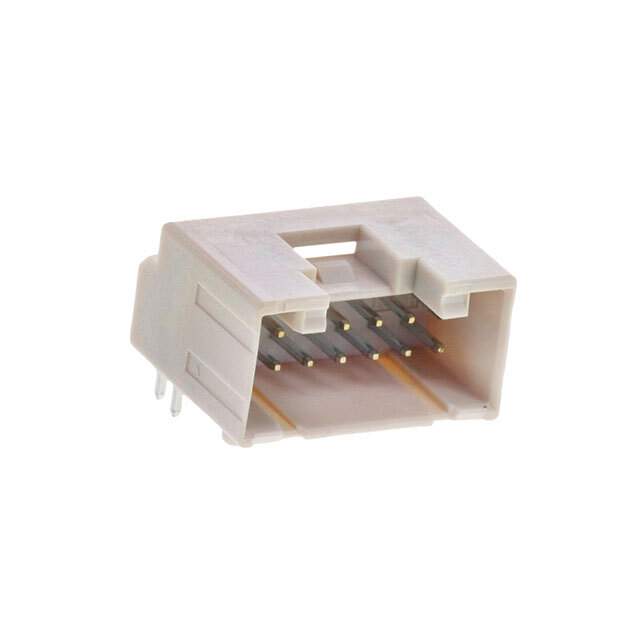

S14B-PUDSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S14B-PUDSS-1(LF)(SN)

Part No S14B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 14POS 2MM / Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S14B-PUD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names S14B-PUDSS-1LFSN,455-2488,S14BPUDSS1LFSN
Standard Package 1,980
Win Source Part Number 1109067-S14B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S14B-PUDSS-1(LF)(SN) CAD Model

Description

The S14B-PUDSS-1(LF)(SN) is a male pin header connector manufactured by JST Sales America Inc.

  • Number of Positions: 14
  • Packaging: Tray
  • Standard Package: 1980
  • Current Rating (Amps): 3A
  • ECCN: EAR99
  • Pitch-Mating: 0.079” (2.00mm)
  • Mounting: Through-hole and right-angle
  • Shrouding: Shrouded-4 wall
  • Contact Shape: Square
  • Temperature Range: -25°C ~ 85°C
