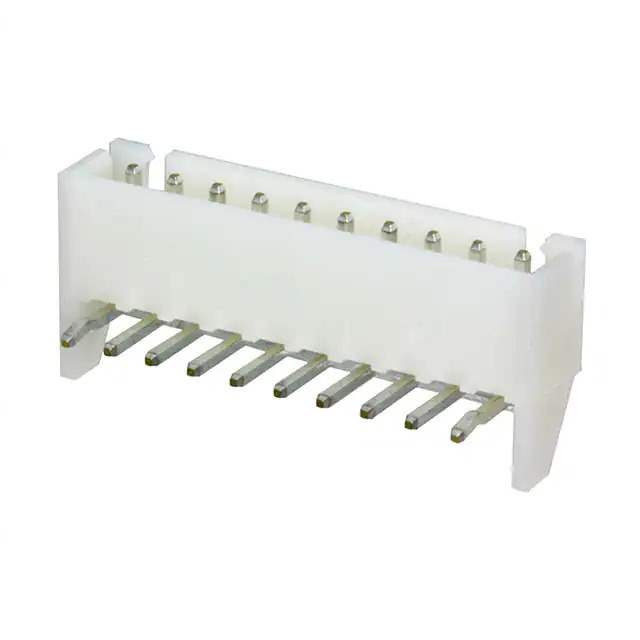

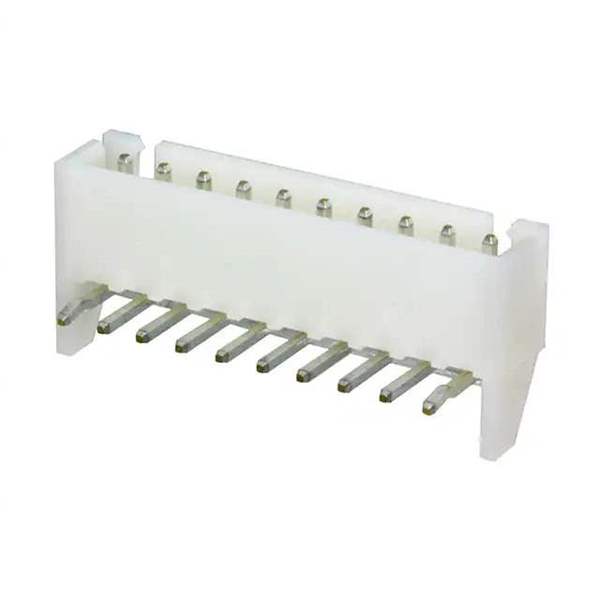

S10B-XH-A-1(LF)(SN)

Name: S10B-XH-A-1(LF)(SN)
Brand: JST Sales America Inc.
SKU: 932591
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S10B-XH-A-1(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 2.5MM / Connector Header Through Hole, Right Angle 10 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XH
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.240" (6.10mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S10B-XH
Standard Package	250 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	932591-S10B-XH-A-1(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S10B-XH-A-1(LF)(SN) CAD Model

Alternative Products

Description

The 932591-S10B-XH-A-1(LF)(SN) is a male pin header connector from the XH series.

Series: XH
Number of Positions: 10
Fastening: Detent Lock
Material: Brass
Voltage Rating: 250V
Application: Board to Cable/Wire
Pitch: 0.098" (2.50mm)
Contact Finish: Tin
Insulation Material: Polyamide (PA66) and Nylon 6/6
Mounting: Through Hole
Orientation: Right Angle
Shrouded: Yes, 4 Walls
Operating Temperature: -25°C to 85°C
Product Status: Active
Standard Package: 250 pcs
