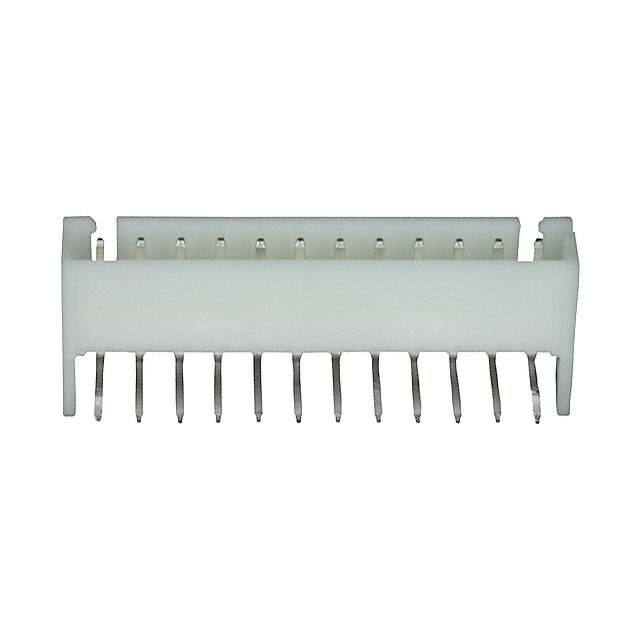

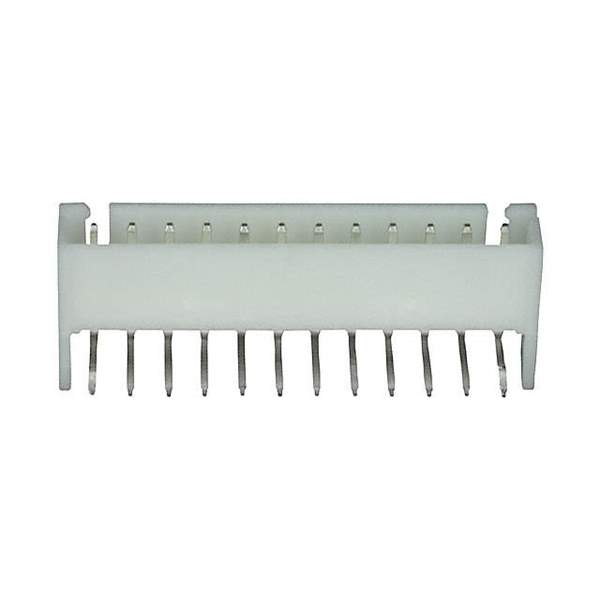

S12B-XH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S12B-XH-A(LF)(SN)

Part No S12B-XH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.5MM / Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66) , Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S12B-XH
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337002-S12B-XH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S12B-XH-A(LF)(SN) CAD Model

Description

The 1337002-S12B-XH-A(LF)(SN) is a rectangular connector with headers and male pins from JST Sales America Inc.

  • Series: XH
  • Positions: 12
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Number of Rows: 1
  • Termination Types: Press-Fit, Solder
  • Fastening Type: Detent Lock
  • Package Type: Bulk
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Mounting Type: Through Hole, Right Angle
  • Shrouded: Shrouded-4 Wall
  • Pitch-Mating: 0.098 inches (2.50mm)
  • Contact Finish-Mating and Post: Tin
  • Insulation Height: 0.240 inches (6.10mm)
  • Contact Shape: Square
  • Operating Temperature: -25 degrees Celsius to 85 degrees Celsius
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3A
  • Standard Package: 200
