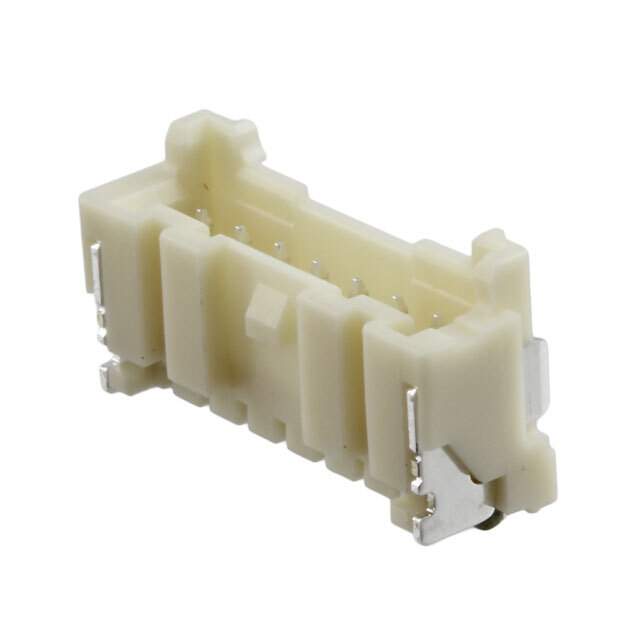

BM07B-PASS-1-TFT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM07B-PASS-1-TFT(LF)(SN)

Part No BM07B-PASS-1-TFT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 7POS 2MM / Connector Header Surface Mount 7 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.1mm, 16mm, 16.2mm
Base Product Number BM07B-PA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-2642-2,455-2642-6,BM07BPASS1TFTLFSN,455-2642-1
Standard Package 500
Win Source Part Number 1332513-BM07B-PASS-1-TFT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM07B-PASS-1-TFT(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1332513-BM07B-PASS-1-TFT(LF)(SN) is a male pin header connector with a 7-position configuration.

  • Features: board guide, pick and place, and solder retention
  • Contact Type: male pin
  • Positions Loaded: all
  • Rows: single row
  • Termination: solder
  • Fastening Type: locking ramp
  • Shrouding: shrouded 4-wall
  • Contact Material: copper alloy
  • Voltage Rating: 250V
  • Packaging: reel
  • Material Flammability: UL94 V-0
  • Applications: board to cable/wire
  • Pitch: 0.079 inches
  • Temperature Range: -25°C to 85°C
  • Current Rating: 3A
