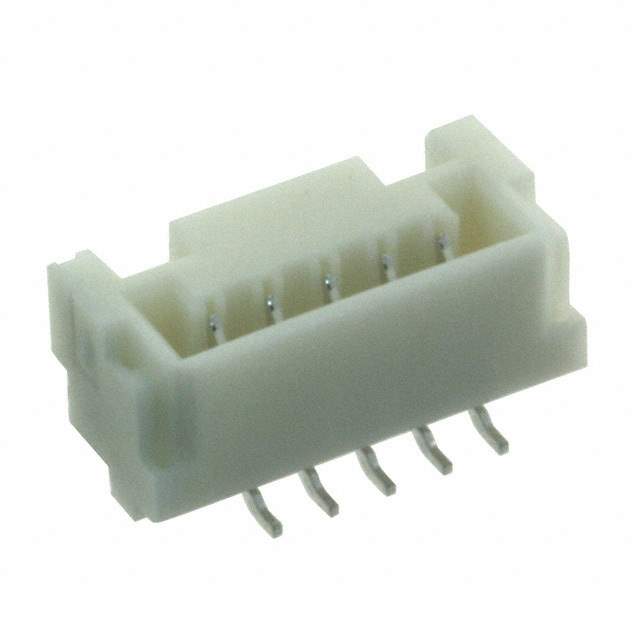

BM05B-GVHS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM05B-GVHS-TB(LF)(SN)

Part No BM05B-GVHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 5POS 1.25MM / Connector Header Surface Mount 5 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 8.8mm
Base Product Number BM05B-GV
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-2627-6,455-2627-2,BM05BGVHSTBLFSN,455-2627-1,(D)BM05B-GVHS-TB(LF)(SN)
Standard Package 2,500
Win Source Part Number 1332691-BM05B-GVHS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM05B-GVHS-TB(LF)(SN) CAD Model

Description

The 1332691-BM05B-GVHS-TB(LF)(SN) is a connector electronic component manufactured by JST Sales America Inc.

  • RoHS Compliant: Yes
  • Positions: 5
  • Features: Solder Retention
  • Connector Type: Header with Outer Shroud Contact
  • Positions Loaded: All
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Mated Stacking Heights: 8.8mm
