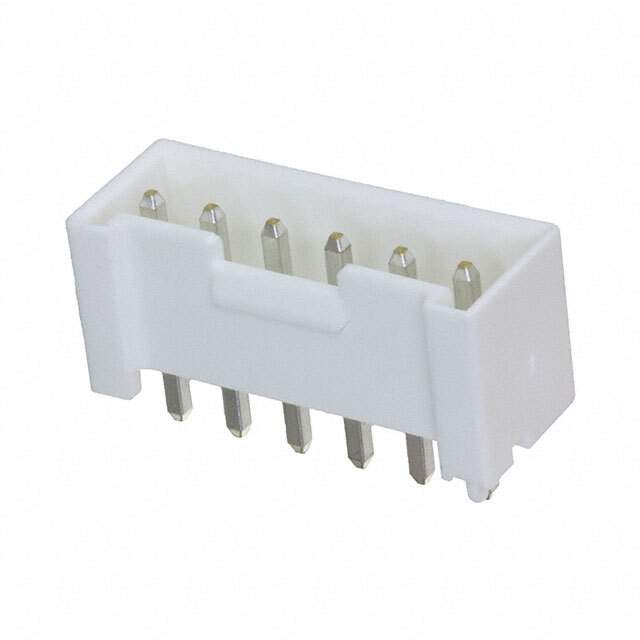

Same model may have multiple batches, images only for reference.

B6P-VH-FB-B(LF)(SN)

Name: B6P-VH-FB-B(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293255
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B6P-VH-FB-B(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	VH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.433" (11.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Guide
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Base Product Number	B6P-VH
Other Names	B6PVHFBBLFSN,B6P-VH-FB-BLFSN,B6P-VH-FB-B(LF)(SN),Q3935373A,455-3980,B6P-VH-FB-B (LF) (SN)
Standard Package	200
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293255-B6P-VH-FB-B(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B6P-VH-FB-B(LF)(SN) CAD Model

Alternative Products

Description

The VH series 6 position male pin header connector is a high-quality connector that is perfect for use in a wide range of electronic applications.

Series: VH
Number of Positions: 6
Features: Board Guide
Fastening Type: Locking Ramp
Contact Material: Copper Alloy
Voltage Rating: 250V
Material Flammability Rating: UL94 V-0
Mounting Type: Through Hole
Shrouding: Shrouded, 4 Walls
Contact Shape: Square
Contact Length: 0.146 inches
Temperature Range: -25 to 85 degrees Celsius
Current Rating: 10A
Style: Board to Cable/Wire
