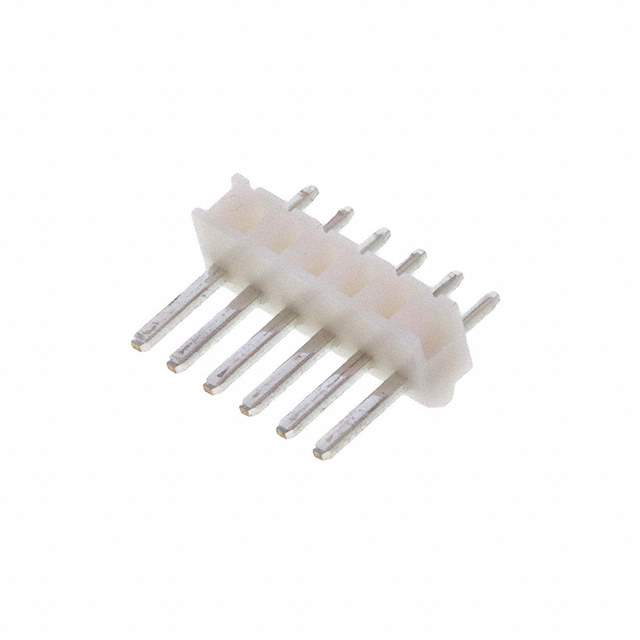

B6P-SHF-1AA(LF)(SN)

Name: B6P-SHF-1AA(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293294
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B6P-SHF-1AA(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	NH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.496" (12.60mm)
Insulation Height	0.126" (3.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	14.9mm
Base Product Number	B6P-SHF
Other Names	455-4181,B6P-SHF-1AA(LF)(SN)
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293294-B6P-SHF-1AA(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B6P-SHF-1AA(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. B6P-SHF-1AA(LF)(SN) is a through-hole header connector with 6 positions and a friction lock fastening type.

Manufacturer: JST Sales America Inc.
Mounting Type: Through-hole
Positions: 6
Fastening Type: Friction lock
Packaging: Bulk
Voltage Rating: 250V
Contact Material: Brass
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Shape: Square
Shrouding: Unshrouded
Contact Finish (Mating/Post): Tin
Contact Length - Mating: 0.236" (6.00mm)
Contact Length - Post: 0.134" (3.40mm)
Contact Length - Overall: 0.496" (12.60mm)
Insulation Height: 0.126" (3.20mm)
Operating Temperature: -25°C to 85°C
Category: Rectangular Connectors - Headers, Male Pins
