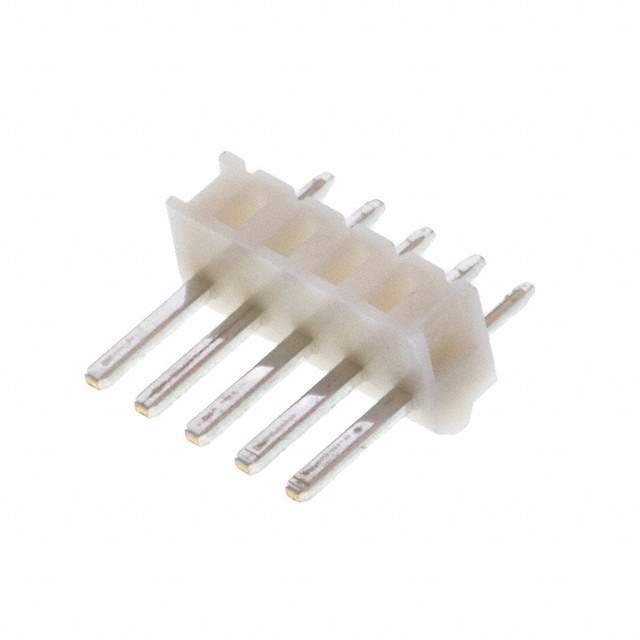

B5P-SHF-1AA(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B5P-SHF-1AA(LF)(SN)

Part No B5P-SHF-1AA(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series NH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.496" (12.60mm)
Insulation Height 0.126" (3.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 14.9mm
Base Product Number B5P-SHF
Other Names 455-4180,B5P-SHF-1AA(LF)(SN)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293295-B5P-SHF-1AA(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B5P-SHF-1AA(LF)(SN) CAD Model

Description

The NH series 5-position male pin header connector from JST Sales America Inc. is a through-hole mounting type connector that is designed for board to cable/wire style connections.

  • Manufacturer: JST Sales America Inc.
  • Series: NH
  • Positions: 5
  • Mounting Type: Through-hole
  • Connection Style: Board to cable/wire
  • Pitch-Mating: 0.098 inches (2.50mm)
  • Insulation Material: Polyamide (PA66) and nylon 6/6
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Fastening Type: Friction lock
  • Shrouding: Unshrouded
  • Connector Length: 0.496 inches (12.60mm)
  • Contact Shape: Square
  • Operating Temperature Range: -25°C to 85°C
  • Packaging: Bulk
  • Standard Package: 1,000
