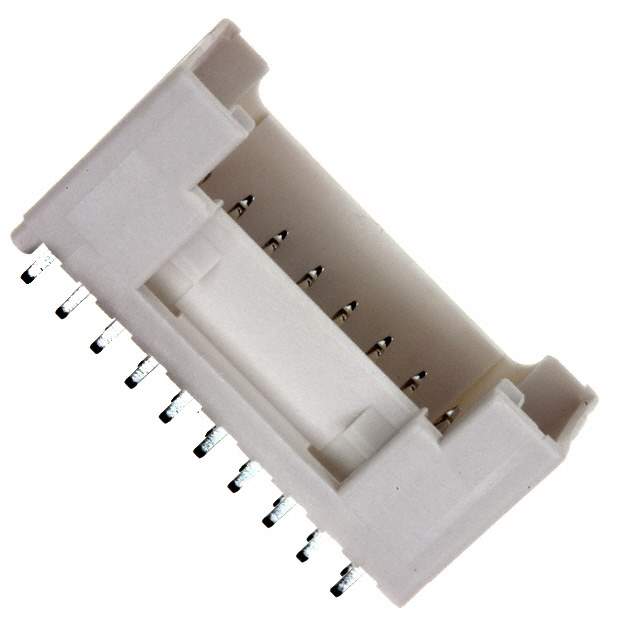

B20B-PUDSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B20B-PUDSS-1(LF)(SN)

Part No B20B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11mm
Base Product Number B20B-PUD
Other Names 455-2505,B20BPUDSS1LFSN,B(20)B-PUDSS-1(LF)(SN)
Standard Package 1,430
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293271-B20B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B20B-PUDSS-1(LF)(SN) CAD Model

Description

The 1293271-B20B-PUDSS-1(LF)(SN) is a 20 position male pin header connector manufactured by JST Sales America Inc.

  • Positions: 20
  • Contact Type: Male Pin Header
  • Connector Type: Rectangular Connector
  • Features: Board Guide
  • Rows: Two
  • Positions Loaded: All
  • Style: Board to Cable/Wire
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Voltage Rating: 250V
  • Flammability Rating: UL94 V-0
  • Temperature Range: -25°C to 85°C
  • Current Rating: 3A
  • HTSUS: 8536.69.4040
