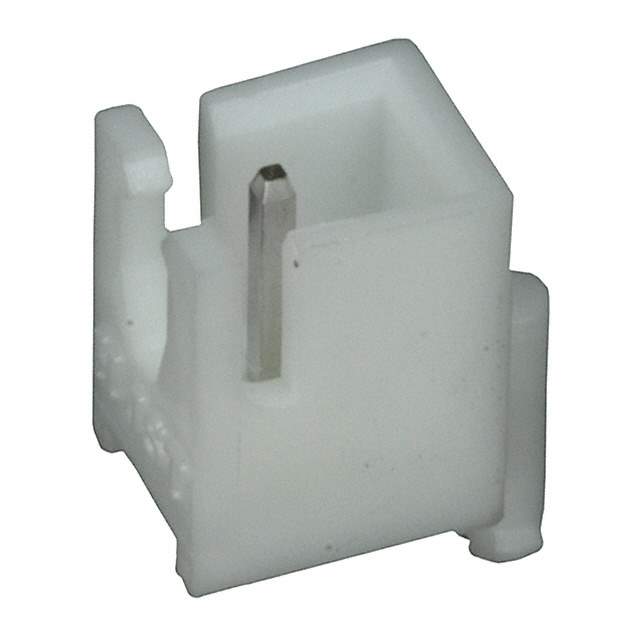

B1B-XH-AM(LF)(SN)(P) Real Image
Same model may have multiple batches, images only for reference.

B1B-XH-AM(LF)(SN)(P)

Part No B1B-XH-AM(LF)(SN)(P)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 1POS / Connector Header Through Hole 1 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Number of Positions 1
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Base Product Number B1B-XH-A
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number (G)B1B-XH-AM(LF)(SN)(P),455-2227,B1B-XH-AM(LF)(SN)
Standard Package 1,000
Win Source Part Number 1332491-B1B-XH-AM(LF)(SN)(P)
Ultra Librarian 3D Model Ultra Librarian B1B-XH-AM(LF)(SN)(P) CAD Model

Description

The JST Sales America Inc. 1332491-B1B-XH-AM(LF)(SN)(P) is a connector that belongs to the rectangular connectors headers, male pins category.

  • Board Lock: feature
  • Contact Type: male pin
  • Positions Loaded: all
  • Number of Rows: 1
  • Standard Package: 1,000
  • Mounting: through the hole
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: natural
