Same model may have multiple batches, images only for reference.

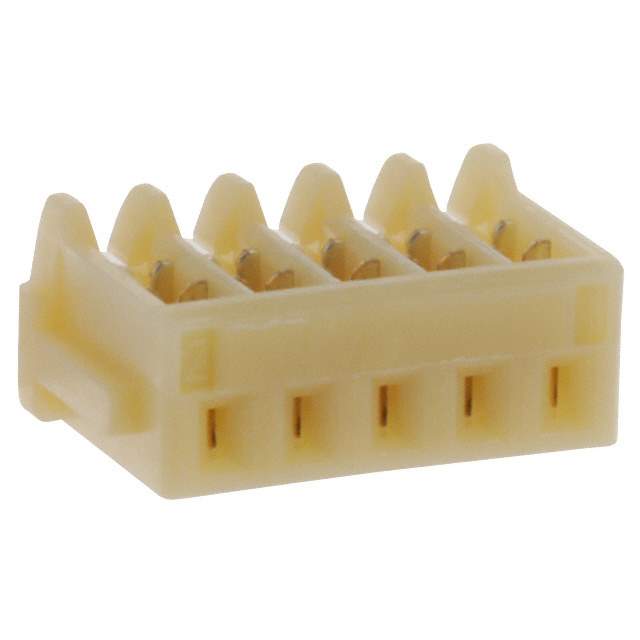

05SR-3S Real Image
Same model may have multiple batches, images only for reference.

05SR-3S

Part No 05SR-3S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT 5POS IDC 30AWG TIN / 5 Position Rectangular Receptacle Connector IDC Tin 30 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 5
Pitch 0.039" (1.00mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Cable Termination IDC
Wire Type Discrete
Wire Gauge 30 AWG
Features Closed End
Contact Finish Tin
Color Natural
Base Product Number 05SR
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 05SR-3S-ND,(G)05SR-3S,05SR3S,455-2186
Standard Package 2,000
Win Source Part Number 1332631-05SR-3S
Ultra Librarian 3D Model Ultra Librarian 05SR-3S CAD Model

Description

The JST Sales America Inc. 05SR-3S is a rectangular connector designed for use in free hanging, panel mount applications.

  • Positions: 5
  • Pitch: 0.039" (1.00mm)
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Feature: Closed End
  • Cable Termination: IDC
  • Standard Package: 2,000
  • Packaging: Bulk
  • Wire Gauge: 30 AWG
  • Color: Natural
  • MSL Level: 1 (Unlimited)
  • ROHS3 Compliant: Yes
