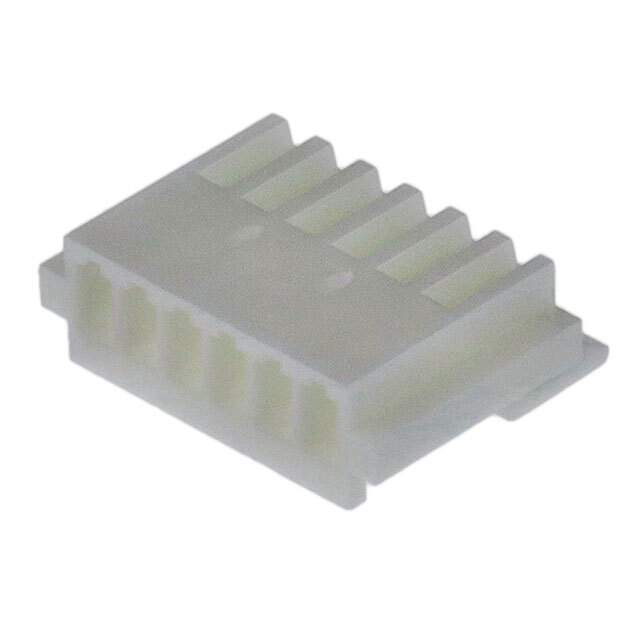

H6P-SHF-AA Real Image
Same model may have multiple batches, images only for reference.

H6P-SHF-AA

Part No H6P-SHF-AA
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series NH
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 6
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number H6P-SHF
Other Names H6P-SHF-AA,455-4193
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1285295-H6P-SHF-AA
Ultra Librarian 3D Model Ultra Librarian H6P-SHF-AA CAD Model

Description

The JST Sales America Inc. H6P-SHF-AA is a rectangular connector housing with 6 positions, designed for female socket crimp contacts.

  • Positions: 6
  • Contact Type: female socket crimp contacts
  • Pitch: 0.098” (2.50mm)
  • Color: natural
  • Connector Type: receptacle
  • Fastening: latch lock
  • Package: bulk
  • Contacts Included: no
  • MSL Level: 1 (unlimited)
  • HTSUS: 8538.90.6000
