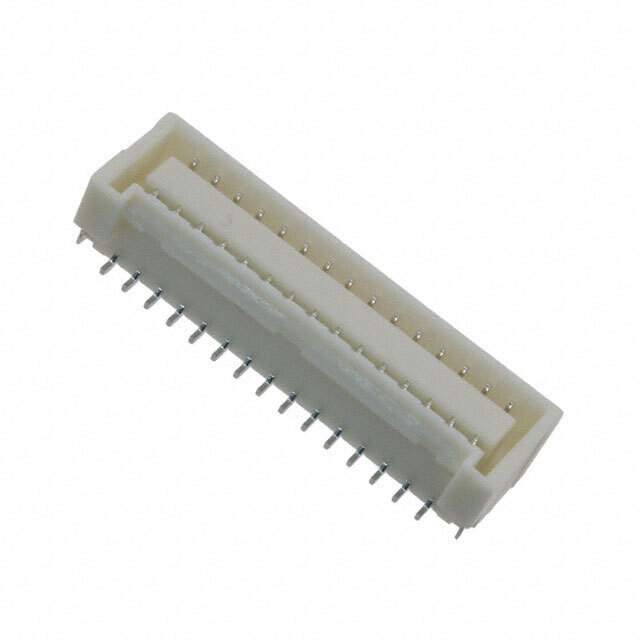

BM30B-ZPDSS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM30B-ZPDSS-TF(LF)(SN)

Part No BM30B-ZPDSS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 1.5MM / Connector Header Surface Mount 30 position 0.059" (1.50mm)
Datasheet
BM30B-ZPDSS-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr JST Sales America Inc.
Series ZPD
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.219" (5.56mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.5mm
Contact Finish Thickness - Post -
Applications -
Base Product Number BM30B-ZP
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000 pcs
Win Source Part Number 1381597-BM30B-ZPDSS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM30B-ZPDSS-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. Rectangular Connector is a high-quality connector designed for header applications from JST Sales America Inc..

  • Positions: 30
  • Feature: Solder Retention
  • Insulation Color: Natural
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mounting Type: Surface Mount
  • Temperature Range: -25°C to 85°C
  • Flammability Rating: UL94 V-0
  • Moisture Sensitivity Level: 1 (Unlimited)
