BM11B-ZESS-TBT(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

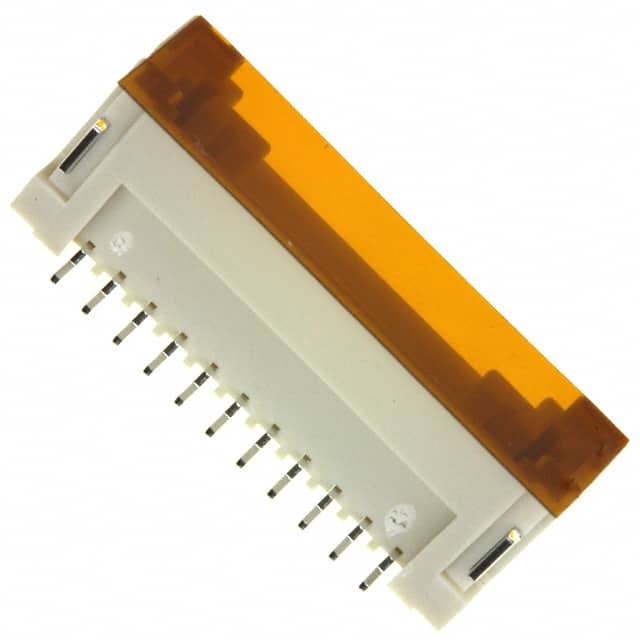

BM11B-ZESS-TBT(LF)(SN)

Part No BM11B-ZESS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 11POS 1.5MM / Connector Header Surface Mount 11 position 0.059" (1.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series ZE
Package Tape & Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 11
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.295" (7.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 9.4mm
Base Product Number BM11B-ZE
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2389-2-ND,BM11B-ZESS-TBT(LF)(SN)-ND,455-2389-6,455-2389-2,455-4207-6,455-2389-1,BM11BZESSTBTLFSN,BM11B-ZESS-TBT (LF)(SN),BM11B-ZESS-TBT(LF)(SN)-,455-4207-2,455-4207-1
Standard Package 800
Win Source Part Number 1174701-BM11B-ZESS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM11B-ZESS-TBT(LF)(SN) CAD Model

Description

The BM11B-ZESS-TBT(LF)(SN) is a 11-position header connector from JST Sales America Inc.

  • Features: Pick and Place, Solder Retention, Locking Ramp
  • Connection Style: Board to Cable/Wire
  • Pitch: 0.059" (1.50mm)
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Operating Temperature: -25°C ~ 85°C
  • Package: Tape and Reel
  • Pieces per Package: 800
  • Design: Shrouded 4 Wall
  • Insulation Material: Polyamide (PA), Nylon
