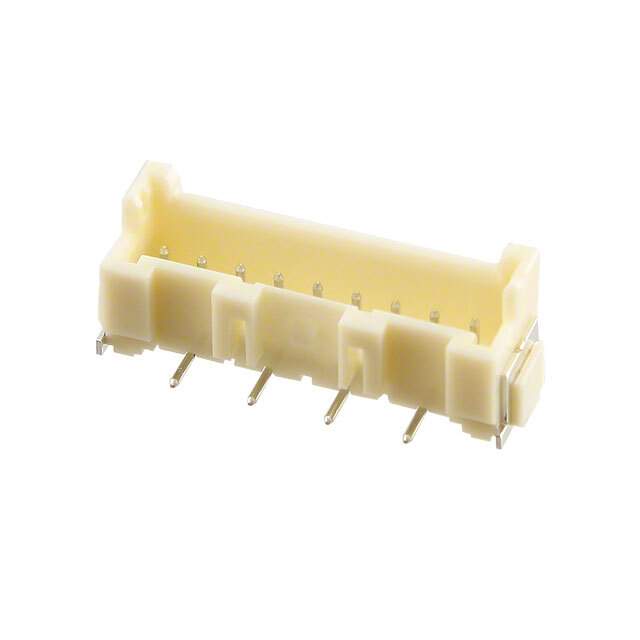

BM09B-XASS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM09B-XASS-TF(LF)(SN)

Part No BM09B-XASS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 9POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Surface Mount 9 position 0.098" (2.50mm)
Manufacturer JST Sales America Inc.
Series XA
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount
Family Name BM09B-XA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-2028-2, BM09BXASSTFLFSN, BM09B-XASS-TF(LF)(SN)-, 455-2028-1, 455-2028-6
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 913375-BM09B-XASS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM09B-XASS-TF(LF)(SN) CAD Model

Description

The BM09B-XASS-TF(LF)(SN) is a 9-position surface mount connector header from the XA series manufactured by JST Sales America Inc.

  • Pitch: 0.098 inches (2.50mm)
  • Suitable for: use in various electronic applications
  • Package: reel package of 500 pieces
  • Operating Temperature Range: -25°C to 85°C
  • Supply and Demand: balance supply and demand status product
  • Popularity: high popularity of 90%
  • Estimated Production Lead Time: 33 weeks
