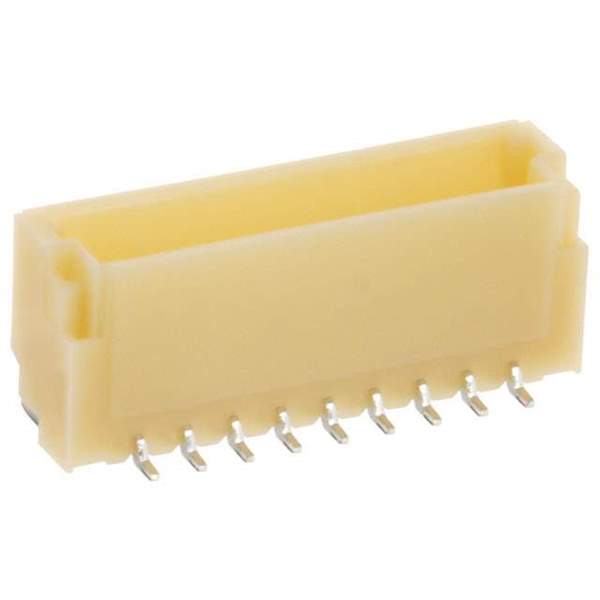

BM09B-SRSS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM09B-SRSS-TBT(LF)(SN)

Part No BM09B-SRSS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759166-BM09B-SRSS-TBT(LF)(SN)
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BM09B-SRSS-TBT(LF)(SN) CAD Model

Description

The BM09B-SRSS-TBT(LF)(SN) from JST Sales America Inc. is a board to cable/wire style connector with a shrouded 4 wall and 9 positions.

  • Pitch-mating: 0.039" (1.00mm).
  • Voltage rating: 50V.
  • Connector has a male pin: contact type with solder termination and a contact finish of tin.
  • Current rating: 0.7A.
  • Can operate within a temperature range of: -25°C to 85°C.
  • Connector is supplied in a: cut tape packaging and has a limited supply and demand status with a manufacturer pack quantity of 1.
