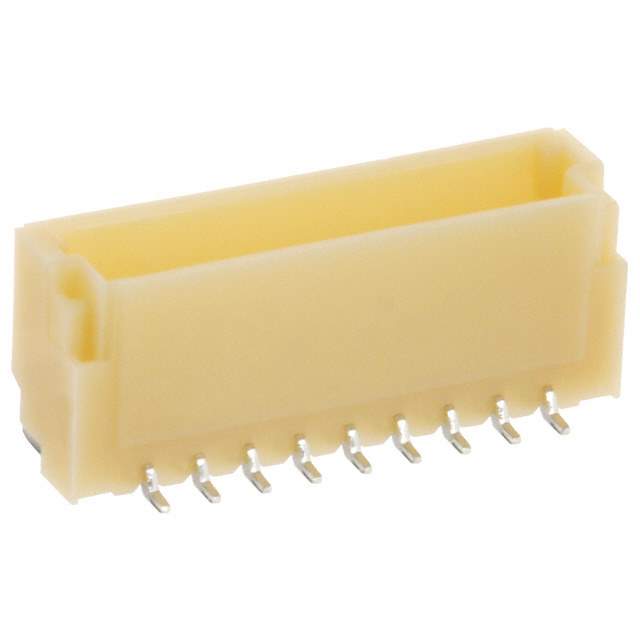

BM09B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM09B-SRSS-TB(LF)(SN)

Part No BM09B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 9POS TOP 1MM TIN
Datasheet
BM09B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series SR
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 9
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
RoHS State Request Verification
Win Source Part Number 737413-BM09B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name SH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BM09B-SRSS-TB(LF)(SN) CAD Model

Description

The 737413-BM09B-SRSS-TB(LF)(SN) electronic component is a 9-position male pin header connector with a shrouded 4-wall design.

  • Supply and Demand Status: limited
  • Pitch-Mating: 0.039" (1.00mm)
  • Voltage Rating: 50V
  • Contact Material: Copper alloy
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA), Nylon
  • Estimated EOL Date: 2026
