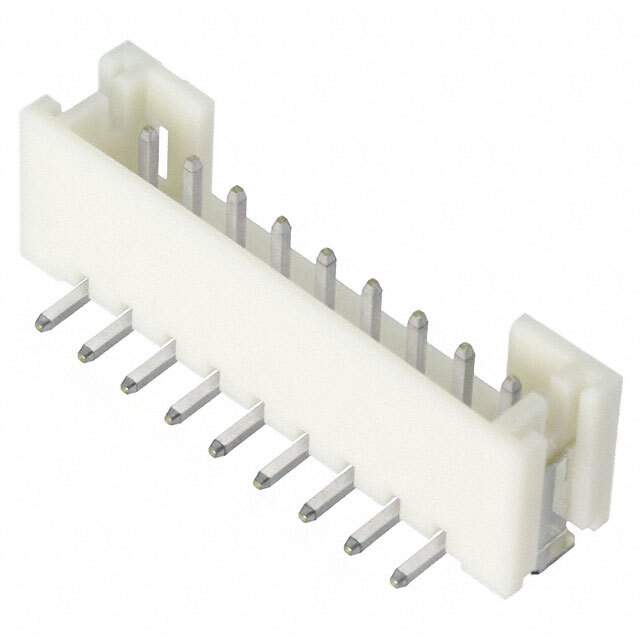

B9B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B9B-PH-SM4-TB(LF)(SN)

Part No B9B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header HDR 9 POS 2mm Solder ST SMD T/R | CONN HEADER SMD 9POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 758324-B9B-PH-SM4-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B9B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 758324-B9B-PH-SM4-TB(LF)(SN) is a surface-mount header connector with 9 male pin contacts.

  • Voltage Rating: 100V
  • Current Rating: 2A
  • Features: solder retention and a detent lock fastening type
  • Contact Shape: square
  • Material: copper alloy
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: polyamide (PA6T) and nylon 6T
  • Application: board to cable/wire
  • Pitch: 0.079" (2.00mm)
  • Mating Contact Finish: tin
  • Design: shrouded 4-wall
  • Insulation Height: 0.260" (6.60mm)
  • Temperature Range: -25°C to 85°C
  • Packaging: reel
  • Manufacturer Pack Quantity: 1
  • Supply and Demand Status: balanced
