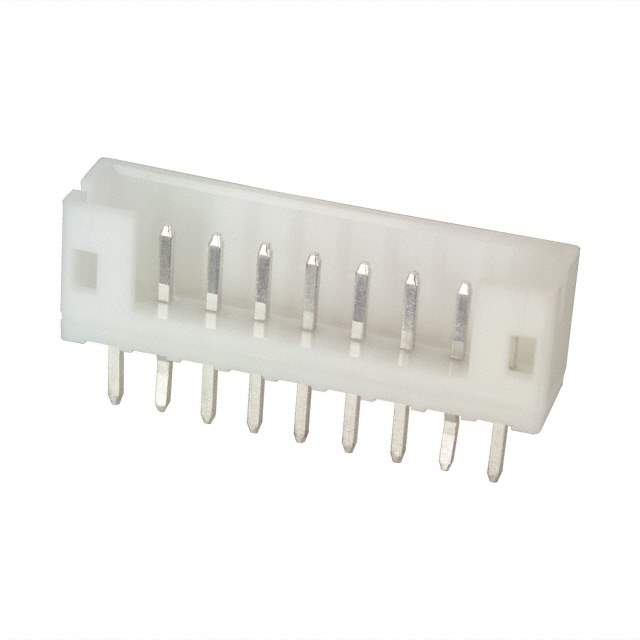

B9B-PH-K-S(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B9B-PH-K-S(LF)(SN)

Part No B9B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 9POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.333" (8.45mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802655-B9B-PH-K-S(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B9B-PH-K-S(LF)(SN) CAD Model

Description

The 802655-B9B-PH-K-S(LF)(SN) from JST Sales America Inc. is a male pin header connector.

  • Fastening Type: Detent Lock
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Style: Board to Cable/Wire
  • Insulation Color: Natural
  • Shrouded: 4 walls
  • Contact Shape: Square
  • Current Rating: 2A
  • Contact Material: Brass
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Temperature Range: -25°C to 85°C
  • Insulation Material: Polyamide (PA66) and nylon 6/6
  • Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 500
