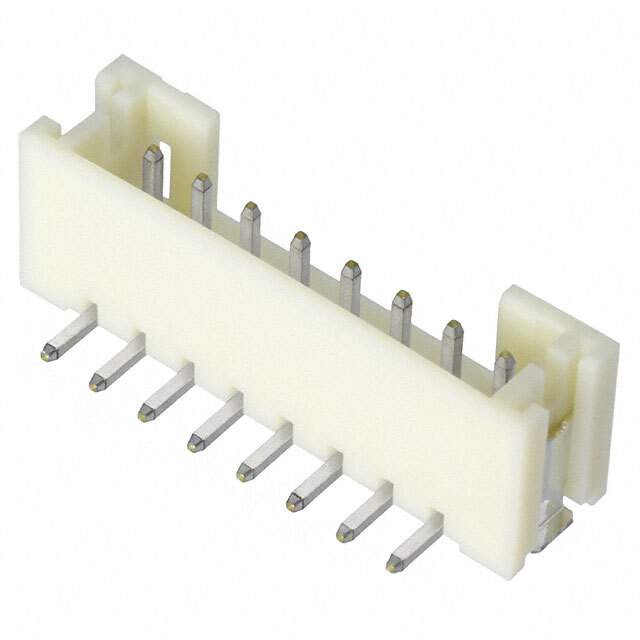

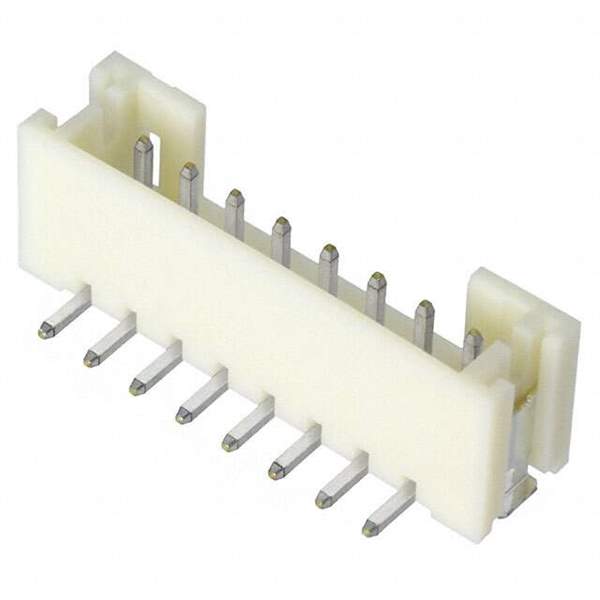

B8B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B8B-PH-SM4-TB(LF)(SN)

Part No B8B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 8POS 2MM SMD
Datasheet
B8B-PH-SM4-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 744687-B8B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian B8B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 744687-B8B-PH-SM4-TB(LF)(SN) is a surface-mount header connector with 8 male pin contacts.

  • Series: PH
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Fastening Type: Detent Lock
  • Contact Shape: Square
  • Contact Material: Copper Alloy
  • Material Flammability: UL94 V-0
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Applications: Board to Cable/Wire
  • Pitch: 0.079" (2.00mm)
  • Mating Contact Finish: Tin
  • Design: Shrouded 4-wall
  • Insulation Height: 0.260" (6.60mm)
  • Operating Temperature: -25°C to 85°C
  • Packaging: Reel
