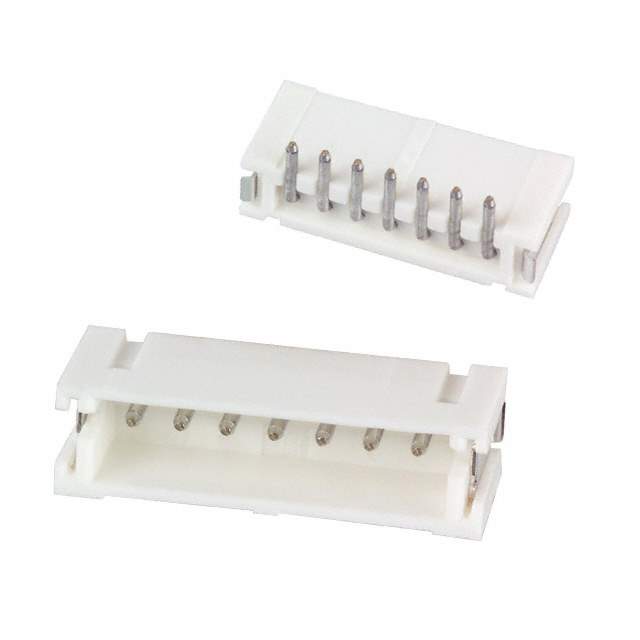

B7B-ZR-SM4-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B7B-ZR-SM4-TF(LF)(SN)

Part No B7B-ZR-SM4-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH TOP 7POS 1.5MM
Datasheet
B7B-ZR-SM4-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 7
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197" (5.00mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 6.4mm
Win Source Part Number 000110-B7B-ZR-SM4-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B7B-ZR-SM4-TF(LF)(SN) CAD Model

Description

Product Overview

The B7B-ZR-SM4-TF(LF)(SN) is a compact and efficient component built for performance. Its streamlined design supports a wide variety of technological applications, providing a reliable solution for complex electronic needs.

Features and Benefits

  • Streamlined, compact design
  • Efficient performance capacity
  • Highly versatile application potential
  • Reliable solution for complex needs

Applications

  • Robotics
  • Internet of Things (IoT) devices
  • Embedded systems
  • Wearable technology

The B7B-ZR-SM4-TF(LF)(SN) is ideal for innovative projects aiming to push the boundaries of technology.
