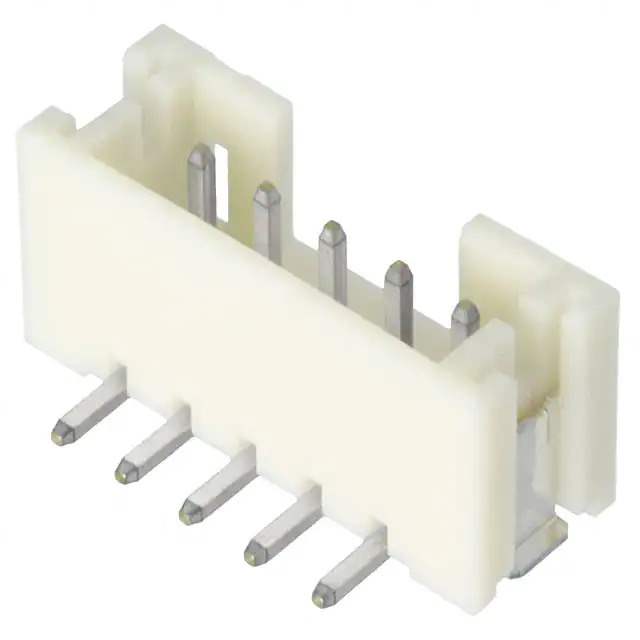

B5B-PH-SM4-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B5B-PH-SM4-TBT(LF)(SN)

Part No B5B-PH-SM4-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 5POS 2MM / Connector Header Surface Mount 5 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Base Product Number B5B-PH-S
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 912560-B5B-PH-SM4-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B5B-PH-SM4-TBT(LF)(SN) CAD Model

Description

The B5B-PH-SM4-TBT(LF)(SN) is a 5-position male pin header from JST Sales America Inc. It is part of the PH series and features pick and place and solder retention for easy installation.

  • Manufacturer: JST Sales America Inc.
  • Series: PH
  • Position Count: 5
  • Features: Pick and Place, Solder Retention
  • Mounting Type: Surface Mount
  • Locking Type: Detent Lock
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Shrouding: Shrouded with 4 Walls
  • Status: Active
