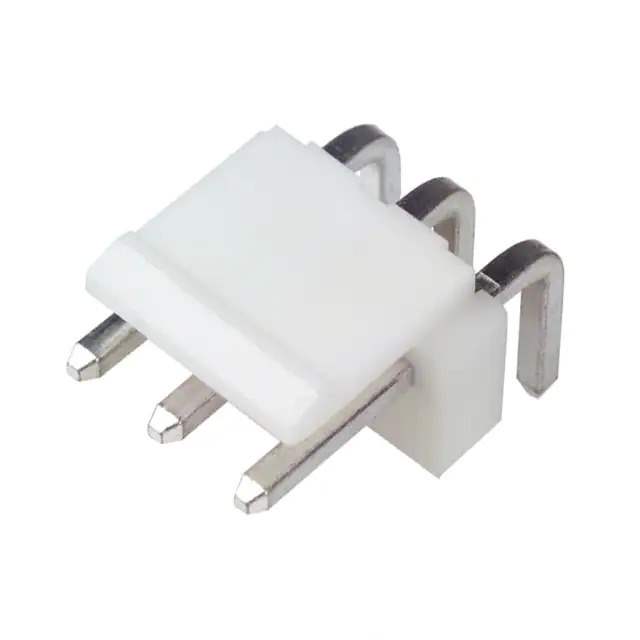

Same model may have multiple batches, images only for reference.

B3PS-VH(LF)(SN)

Name: B3PS-VH(LF)(SN)
Brand: JST Sales America Inc.
SKU: 845488
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B3PS-VH(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 3POS 3.96MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	VH
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	10A
Voltage Rating	250V
Base Product Number	B3PS-VH
Standard Package	500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	845488-B3PS-VH(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B3PS-VH(LF)(SN) CAD Model

Alternative Products

Description

The VH series male pin header connector is a versatile component designed for various electronic applications.

Number of Positions: 3
Pitch: 0.156" (3.96mm)
Termination: Solder
Fastening Type: Locking Ramp
Mounting Type: Through Hole, Right Angle
Voltage Rating: 250V
Current Rating: 10A
Lifecycle Status: Active
Packaging: Bulk
Standard Package: 500 pcs
Series: VH
Manufacturer: JST Sales America Inc.
