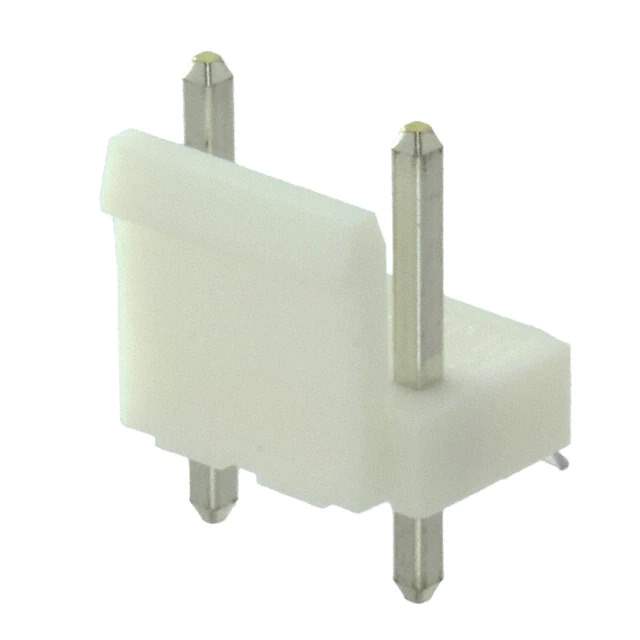

B2P3-VH(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B2P3-VH(LF)(SN)

Part No B2P3-VH(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 7.92MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VA
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.312" (7.92mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 7A
Voltage Rating 250V
Mated Stacking Heights 17.5mm
Base Product Number B2P3-VH
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 846525-B2P3-VH(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B2P3-VH(LF)(SN) CAD Model

Description

The 846525-B2P3-VH(LF)(SN) is a 2-position rectangular connector header from JST Sales America Inc. Bold the product name (e.g., 846525-B2P3-VH(LF)(SN) → 846525-B2P3-VH(LF)(SN)) and manufacturer (e.g., JST Sales America Inc. → JST Sales America Inc.).

  • Positions: 2
  • Connector Type: Header
  • Series: VA
  • Pin Type: Male
  • Row: Single
  • Positions Loaded: All
  • Locking: Locking Ramp
  • Voltage Rating: 250V
  • Connector Material: Brass
  • Mated Stacking Height: 17.5mm
  • Standard Package: 1,000 pieces
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Style: Board-to-Cable/Wire
  • Mating Pitch: 0.312 inches (7.92mm)
  • Product Status: Active
