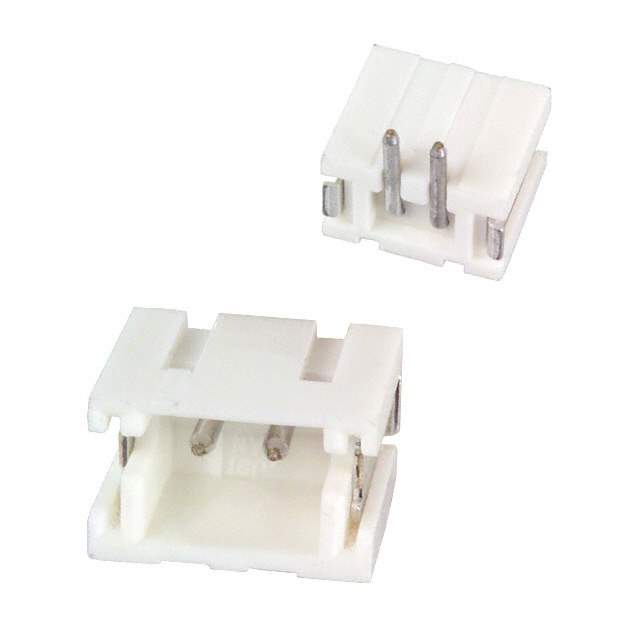

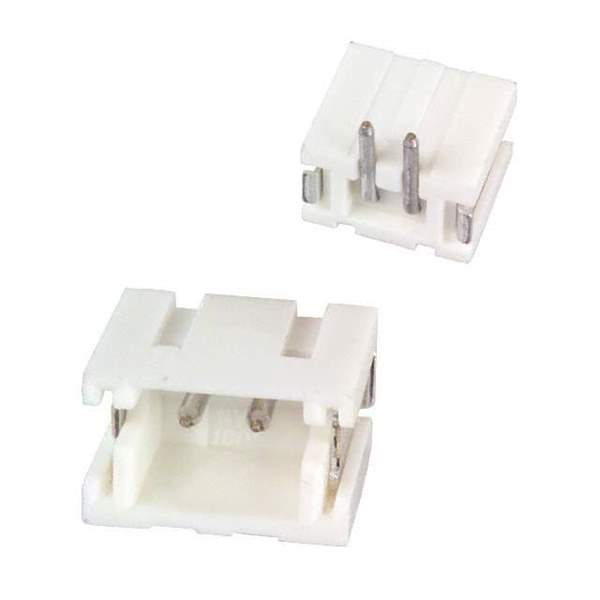

B2B-ZR-SM4-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B2B-ZR-SM4-TF(LF)(SN)

Part No B2B-ZR-SM4-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header (4 Sides) HDR 2 POS 1.5mm Solder ST Top Entry SMD T/R / CONN HEADER ZH TOP 2POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197" (5.00mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 6.4mm
Win Source Part Number 136571-B2B-ZR-SM4-TF(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ZH
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian B2B-ZR-SM4-TF(LF)(SN) CAD Model

Description

Overview

The B2B-ZR-SM4-TF(LF)(SN) connector is a superior model built for performance and endurance. It integrates a lead-free composition with corrosion-resistant features for optimal functionality.

Features and Benefits

  • Corrosion Resistance: High-grade SN plating ensures the connector remains unaffected by corrosive agents.
  • High Performance: Guarantees robust contact integrity and conductivity across varied applications.
  • Environmentally-Friendly: Incorporates LF elements that adhere to modern eco-friendly regulations.

Applications

  • Marine Electronics
  • Automated Manufacturing Systems
  • Security Systems
  • Transport Electronics

Additional Details

Perfect for professional-grade projects where reliability and compliance are non-negotiable, ensuring each connection is secure and efficient.
