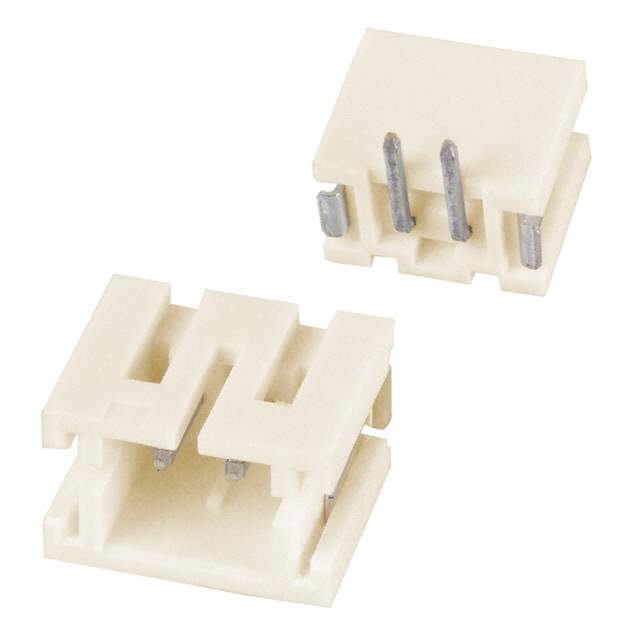

B2B-PH-SM3-TB

Part No B2B-PH-SM3-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 2POS 2MM SMD
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Insulation Material Polyamide (PA46), Nylon 4/6
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 119442-B2B-PH-SM3-TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B2B-PH-SM3-TB CAD Model

Description

Description

The B2B-PH-SM3-TB is engineered to offer optimal electrical performance for sophisticated applications. Its design focuses on providing a secure and reliable connection.

Features and Benefits

  • Optimized for high electrical performance
  • Secure and stable connectivity
  • Compact and efficient design
  • Easy to integrate into existing systems

Applications/Projects

  • Power supply systems
  • Electromechanical assemblies
  • High-speed data transfer applications
  • Embedded systems development

This component is perfect for high-demand applications that require stability and efficiency in electrical transmission.
