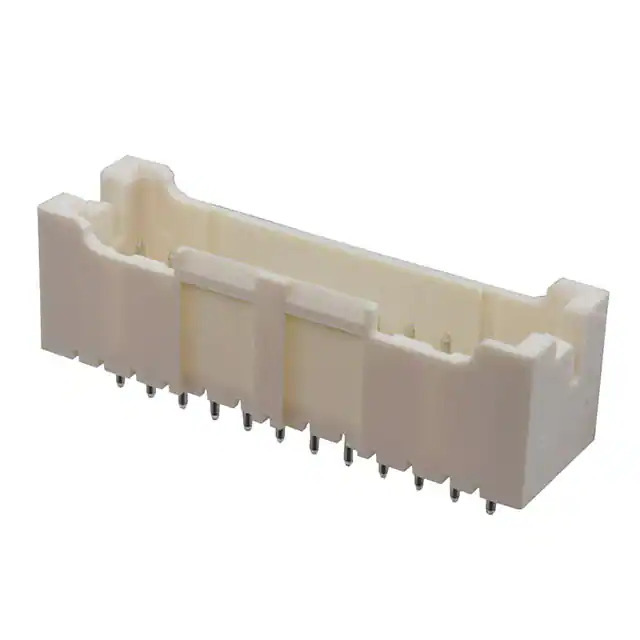

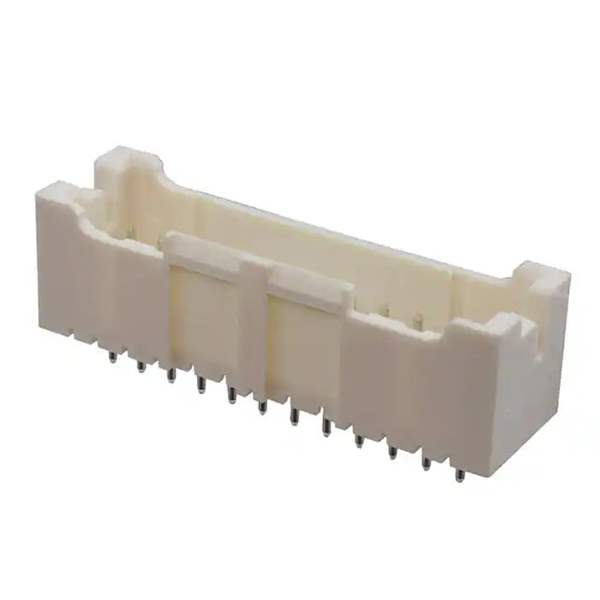

B24B-XADSS-N(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B24B-XADSS-N(LF)(SN)

Part No B24B-XADSS-N(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 2.5MM / Connector Header Through Hole 24 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XAD
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length -
Insulation Height 0.398" (10.11mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 13.8mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B24B-XAD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362532-B24B-XADSS-N(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B24B-XADSS-N(LF)(SN) CAD Model

Description

The 1362532-B24B-XADSS-N(LF)(SN) is a male pin header connector from JST Sales America Inc.'s XAD series.

  • Series: XAD
  • Connection Type: Board-to-Cable/Wire
  • Pitch: 0.098" (2.50mm)
  • Positions: 24
  • Rows: 2
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Shrouded: 4 Walls
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Operating Temperature: -25°C to 85°C
  • Mounting: Through Hole
  • Locking Feature: Locking Ramp
  • Insulation Material: Polyamide (PA66), Nylon 6/6, and Glass-Filled
  • Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Status: Active
  • Package: Bulk
