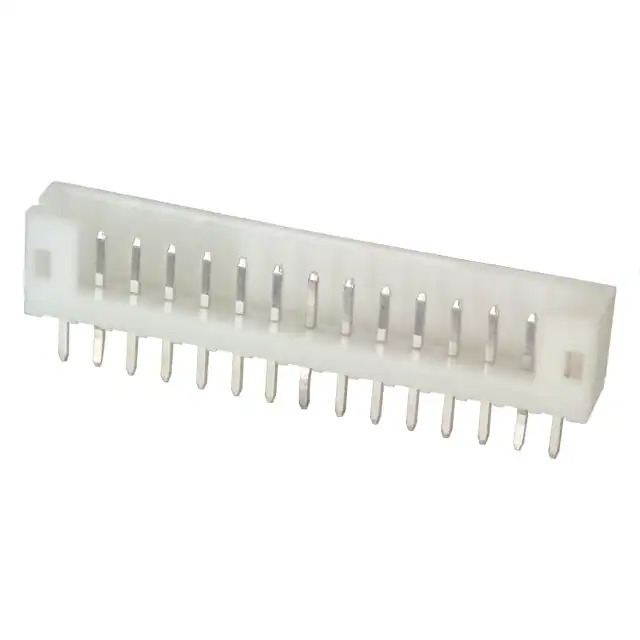

Same model may have multiple batches, images only for reference.
B15B-PH-K-S(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B15B-PH-K-S(LF)(SN)

Part No B15B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 15POS 2MM / Connector Header Through Hole 15 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 15
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.333" (8.45mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B15B-PH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362481-B15B-PH-K-S(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B15B-PH-K-S(LF)(SN) CAD Model

Description

The B15B-PH-K-S(LF)(SN) is a male pin header connector manufactured by JST Sales America Inc.

  • Mounting Type: Through Hole
  • Pitch: 0.079" (2.00mm)
  • Number of Positions: 15
  • Number of Rows: 1
  • Fastening Type: Detent Lock
  • Header Orientation: Shrouded - 4 Wall
  • Current Rating: 2A
  • Voltage Rating: 100V
  • Operating Temperature: -25°C ~ 85°C
  • ECCN: Compliant
  • Contact Length - Overall: 0.333" (8.45mm)
  • Packaging: Bulk
