Same model may have multiple batches, images only for reference.

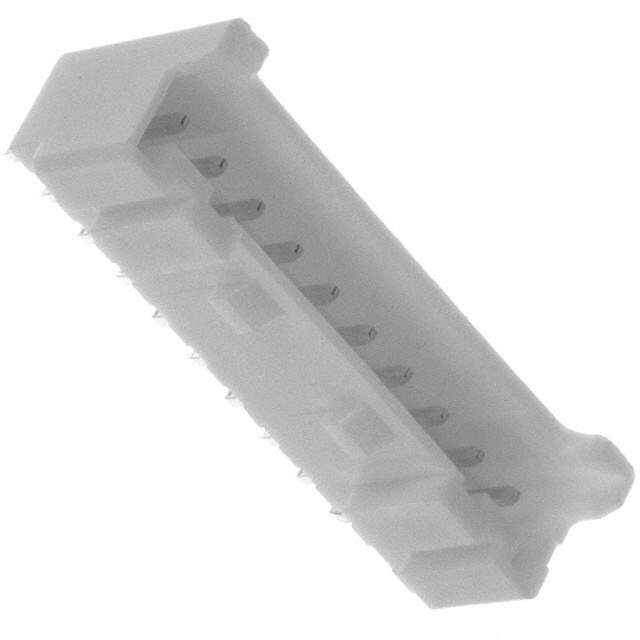

B10B-PASK-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B10B-PASK-1(LF)(SN)

Part No B10B-PASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.126" (3.20mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Base Product Number B10B-PAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-1840
Standard Package 500
Win Source Part Number 1001369-B10B-PASK-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B10B-PASK-1(LF)(SN) CAD Model

Description

The JST Sales America Inc. PA series connector is a male header with ten positions.

  • Series: PA
  • Number of Positions: Ten
  • Connector Type: Rectangular Connector
  • Style: Board-to-Cable/Wire
  • Board Guide: Yes
  • Locking Ramp: Yes
  • Shrouding: Four-Wall
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Pitch-Mating: 0.079 inches
  • Mounting Type: Through-Hole
  • Win Source Part Number: 1001369-B10B-PASK-1(LF)(SN)
  • Package: Bulk of 500
  • Popularity Rate: Low
