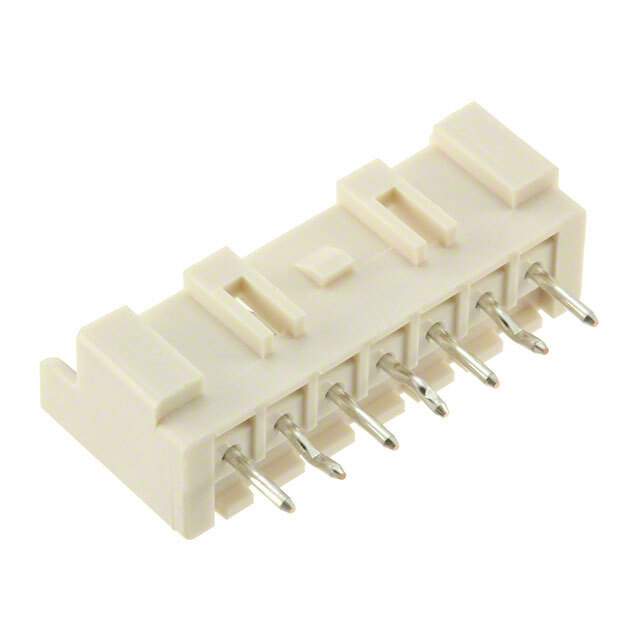

B07B-XASK-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B07B-XASK-1(LF)(SN)

Part No B07B-XASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog OEM Parts (A - B)
Description Connector Header Through Hole 7 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Beige, Natural
Connector Type Male Pin, Power, Rectangular
Contact Material Bronze, Tin
Contact Plating Tin
Contact Resistance 10 mΩ
Current Rating 3 A
Fastening Type Ramp
Flammability Rating UL94 V-0
Gender Male
Height 8.8 mm
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Length 3.4 mm
Lead Pitch 2.5 mm
Length 6.096 mm
Material Nylon
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount PCB, Through Hole
Number of Contacts 7
Number of Pins 7
Number of Poles 7
Number of Positions 7
Number of Rows 1
Orientation Straight
Pitch 2.5 mm
REACH SVHC No SVHC
RoHS Compliant
Termination Press-Fit
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Weight 28.349523 g
Width 6.4 mm
Wire/Cable Gauge 20 AWG
Win Source Part Number 1047312-B07B-XASK-1(LF)(SN)
Categories OEM Parts(A-B)
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B07B-XASK-1(LF)(SN) CAD Model

Description

The 1047312-B07B-XASK-1(LF)(SN) is a 7-position male pin power rectangular connector with a pitch of 2.5 mm, manufactured by JST Sales America Inc.

  • Material: nylon
  • Color: beige and natural
  • Termination: press-fit
  • Fastening Type: ramp
  • Contact Resistance: 10 mΩ
  • Insulation Resistance: 1 GΩ
  • Contact Material: bronze
  • Contact Plating: tin
  • Voltage Rating: 250 V
  • Current Rating: 3 A
  • Length: 6.096 mm
  • Width: 6.4 mm
  • Height: 8.8 mm
  • Weight: 28.349523 g
  • PCB Mounting: through-hole
  • Lead-Free: yes
  • RoHS Compliant: yes
