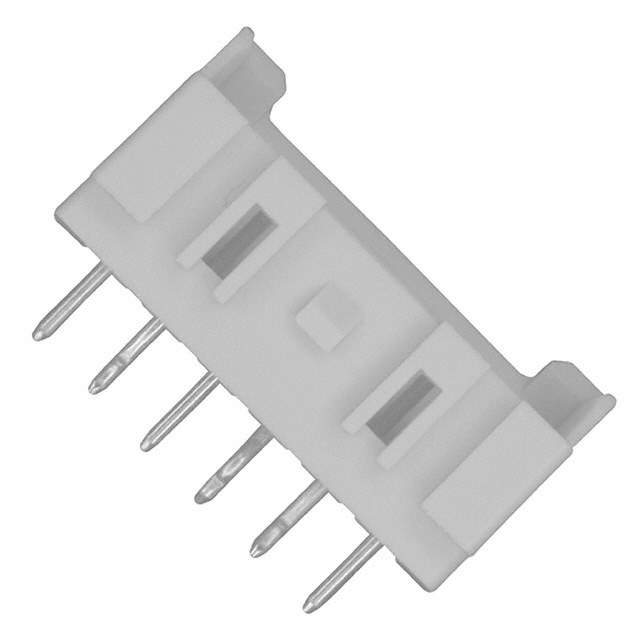

B06B-XASK-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B06B-XASK-1(LF)(SN)

Part No B06B-XASK-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER XA 6POS 2.5MM TIN / Conn Shrouded Header (4 Sides) HDR 6 POS 2.5mm Solder ST Thru-Hole Box
Datasheet
B06B-XASK-1(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series XA
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.346" (8.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 11.3mm
Win Source Part Number 769404-B06B-XASK-1(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name XA
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B06B-XASK-1(LF)(SN) CAD Model

Description

The JST Sales America Inc. 769404-B06B-XASK-1(LF)(SN) is a header through-hole connector with 6 positions and a pitch of 0.098" (2.50mm).

  • Series: XA
  • Package: Bulk
  • Mounting: Through-hole
  • Family: XA
  • Category: Connectors
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Lead Time: 33 weeks
  • HTSUS: 8536.69.4040
  • Temperature Range: -25°C ~ 85°C
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Fastening Type: Locking Ramp
