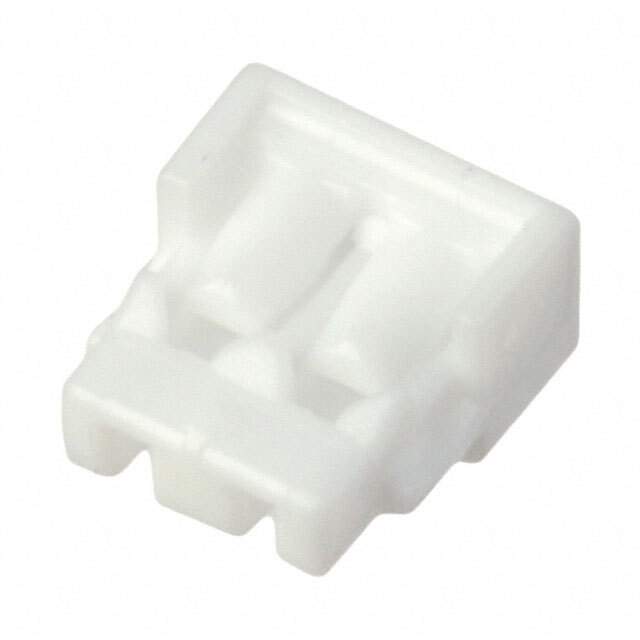

ACHTR-02V-S Real Image
Same model may have multiple batches, images only for reference.

ACHTR-02V-S

Part No ACHTR-02V-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Datasheet
ACHTR-02V-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series ACH
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 2
Pitch 0.047" (1.20mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number ACHTR-02
Other Names 455-2201,ACHTR02VS
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1285306-ACHTR-02V-S
Ultra Librarian 3D Model Ultra Librarian ACHTR-02V-S CAD Model

Description

The JST Sales America Inc. 1285306-ACHTR-02V-S is a female socket connector that is used in various electronic applications.

  • Series: ACH
  • Positions: 2
  • Pitch: 0.047 inches
  • Mounting Type: free-hanging (in-line)
