Same model may have multiple batches, images only for reference.

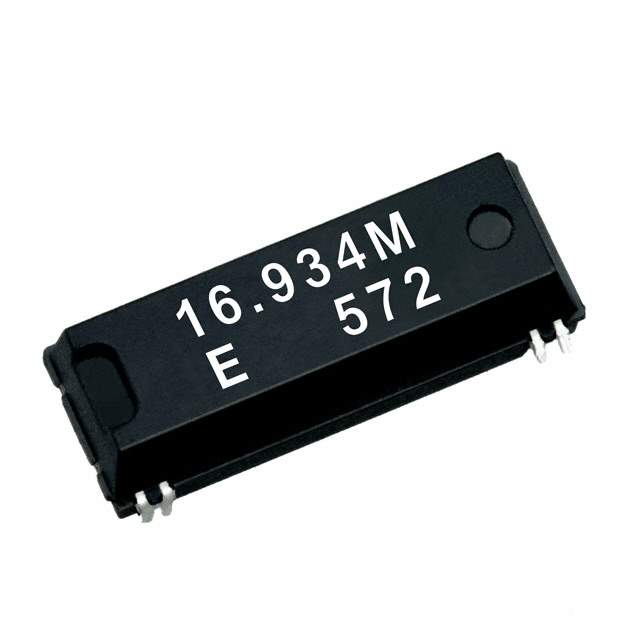

MA-406 40.0000M-C: ROHS Real Image
Same model may have multiple batches, images only for reference.

MA-406 40.0000M-C: ROHS

Part No MA-406 40.0000M-C: ROHS
Manufacturer Epson Company
Catalog Oscillators
Description CRYSTAL 40.0000MHZ 18PF SMD / 40 MHz ±50ppm Crystal 18pF 80 Ohms 4-SOJ, 9.60mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr EPSON
Series MA-406
Package Bulk
Product Status Obsolete
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SOJ, 9.60mm pitch
Dimension 0.461" L x 0.157" W (11.70mm x 4.00mm)
Height - Seated (Max) 0.146" (3.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 1
Win Source Part Number 1074644-MA-406 40.0000M-C: ROHS
Ultra Librarian 3D Model Ultra Librarian MA-406 40.0000M-C: ROHS CAD Model

Description

The MA-406 is a MHz crystal manufactured by EPSON. The product has a frequency of 40 MHz and an ESR (Equivalent Series Resistance) of 80 Ohms. The frequency stability of the product is ±30ppm and the frequency tolerance is ±50ppm. The product has a load capacitance of 18pF and operates in the fundamental mode. The product belongs to the Crystals, Oscillators, Resonators>Crystals category and has a package of bulk. The product is obsolete.
