Same model may have multiple batches, images only for reference.

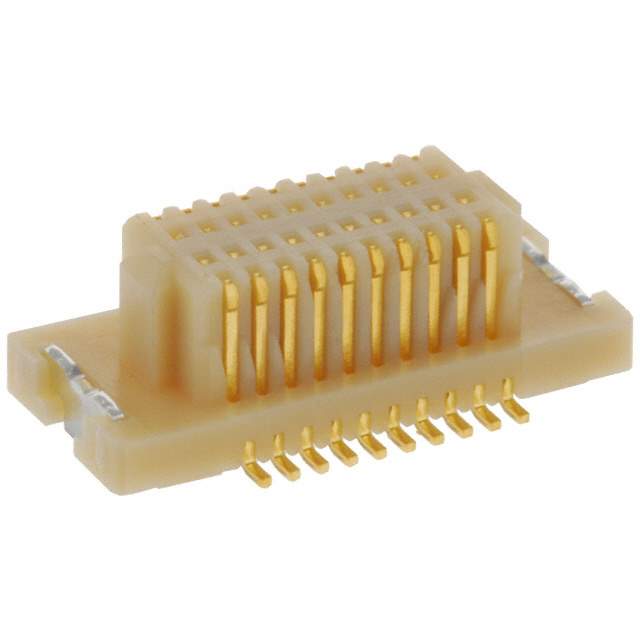

20R-JMDSS-G-1-TF(S)(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

20R-JMDSS-G-1-TF(S)(LF)(SN)

Part No 20R-JMDSS-G-1-TF(S)(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Style SMD
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 4.5mm, 5mm, 6mm
Height Above Board 0.122" (3.10mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 736143-20R-JMDSS-G-1-TF(S)(LF)(SN)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 20R-JMDSS-G-1-TF(S)(LF)(SN) CAD Model

Description

The 736143-20R-JMDSS-G-1-TF(S)(LF)(SN) is a connector from JST Sales America Inc.

  • Category: Connectors, Interconnects
  • Connector Type: Receptacle with Center Strip Contacts
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Mounting Style: SMD
  • Features: Solder Retention
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Heights: 4.5mm, 5mm, 6mm
  • Height Above Board: 0.122" (3.10mm)
  • Popularity: Low
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
