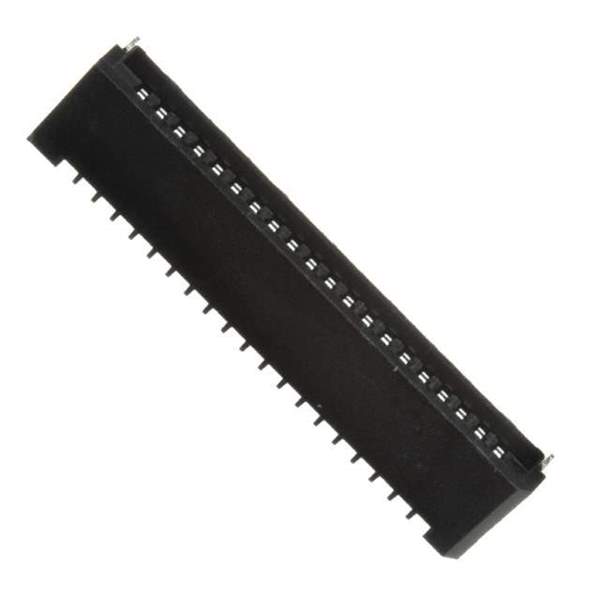

20FMN-SMT-A-TF(LF)(SN)

Name: 20FMN-SMT-A-TF(LF)(SN)
Brand: JST Sales America Inc.
SKU: 761755
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	20FMN-SMT-A-TF(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC TOP 20POS 1.00MM R/A
Datasheet	20FMN-SMT-A-TF(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Series	FMN
Packaging	Reel package
Flat Flex Type	FFC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	20
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.118" (3.00mm)
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Polyamide (PA6T), Nylon 6T
Features	Low Insertion Force (LIF)
Voltage Rating	50V
Operating Temperature Range	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Black
Win Source Part Number	761755-20FMN-SMT-A-TF(LF)(SN)
Popularity	Medium
Supply and Demand Status	Balance
Family Name	FMN
Introduction Date	October 18, 2005
ECCN	EAR99
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 20FMN-SMT-A-TF(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 761755-20FMN-SMT-A-TF(LF)(SN) connector is a 20-position top contact FFC/FCB connector with a pitch of 0.039 inches.

Low Insertion Force (LIF): Yes
Contact Material: Phosphor Bronze
Contact Finish: Tin Plating
Voltage Rating: 50V
Current Rating: 0.5A
Housing Material: Polyamide (PA6T) or Nylon 6T
Flammability Rating: UL94 V-0
Mounting: Surface Mount, Right Angle
Operating Temperature Range: -25°C to 85°C
EOL Date: 2026
