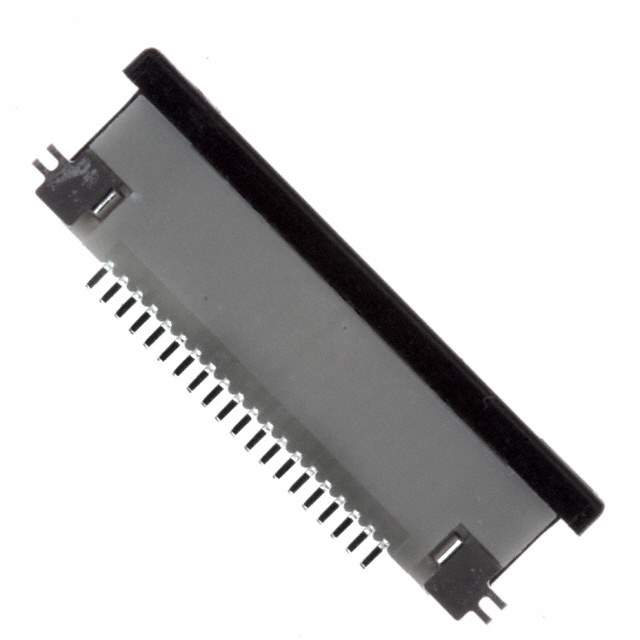

20FLZ-SM2-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

20FLZ-SM2-TB(LF)(SN)

Part No 20FLZ-SM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 20POS 0.50MM R/A
Datasheet
20FLZ-SM2-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Gray
Actuator Color Black
Win Source Part Number 1003034-20FLZ-SM2-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 20FLZ-SM2-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1003034-20FLZ-SM2-TB(LF)(SN) is a surface-mount connector for flat flex cables.

  • Contacts: 20 contacts
  • Pitch: 0.020" (0.50mm)
  • Current Rating: 0.5A
  • Features: solder retention and a slide lock locking feature
  • Voltage Rating: 50V
  • Height Above Board: 0.079" (2.00mm)
  • Material: polyamide (PA6T) and nylon 6T
  • Material Flammability Rating: UL94 V-0
  • Cable Type: suitable for FFC and FPC cables with a thickness of 0.30mm
  • Temperature Range: -25°C to 85°C
  • Packaging: supplied in a reel packaging
  • Supply and Demand Status: balanced
