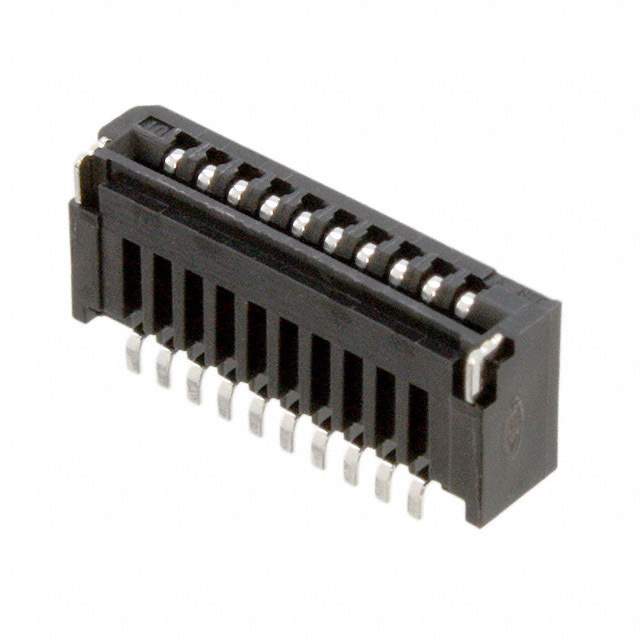

10FMN-SMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

10FMN-SMT-A-TF(LF)(SN)

Part No 10FMN-SMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 10POS 1.00MM R/A
Datasheet
10FMN-SMT-A-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Flat Flex Type FFC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.118" (3.00mm)
Cable End Type Straight
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Black
Win Source Part Number 1000895-10FMN-SMT-A-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10FMN-SMT-A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1000895-10FMN-SMT-A-TF(LF)(SN) low insertion force (LIF) connector is a surface mount type connector with a pitch of 0.039 inches (1.00mm) and a voltage rating of 50V.

  • Pitch: 0.039 inches (1.00mm)
  • Voltage Rating: 50V
  • Termination: Solder
  • Cable End Type: Straight
  • Shrouded: 4 walls
  • Current Rating: 0.5A
  • Height Above Board: 0.118 inches (3.00mm)
  • Insulation Material: Polyamide (PA6T) and nylon 6T
  • Housing Material: Polyamide (PA6T) and nylon 6T
  • Popularity: Medium
