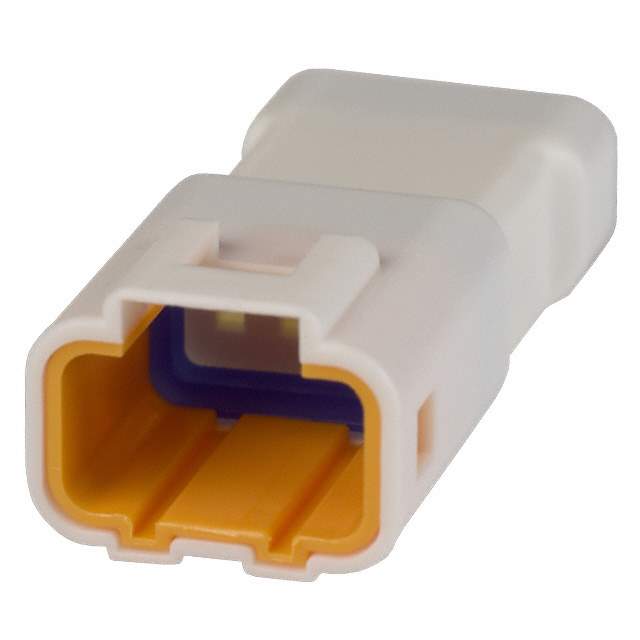

Same model may have multiple batches, images only for reference.

04T-JWPF-VSLE-S

Name: 04T-JWPF-VSLE-S
Brand: JST Sales America Inc.
SKU: 1285298
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	04T-JWPF-VSLE-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Housings
Mfr	JST Sales America Inc.
Series	JWPF
Package	Bulk
Connector Type	Plug
Contact Type	Male Pin
Number of Positions	4
Pitch	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	Natural
Features	JIS C 0920 Grade Level 7
Note	Contacts Not Included
Base Product Number	04T-JWPF
Other Names	04TJWPFVSLES,455-1170
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1285298-04T-JWPF-VSLE-S
Ultra Librarian 3D Model	Ultra Librarian 04T-JWPF-VSLE-S CAD Model

Alternative Products

Description

The JWPF series rectangular connector housing is a 4 position plug male pin connector with a pitch of 0.079 inches (2.00mm).

Series: JWPF
Positions: 4
Connector Type: plug
Contact Type: male pin
Pitch: 0.079 inches (2.00mm)
Color: natural
Fastening Type: latch holder
Contact Termination: crimp
Feature: JIS C 0920 Grade Level 7 compliant
Mounting Type: free hanging (in-line)
Contacts Included: no
Manufacturer: JST Sales America Inc.
Standard Package: 1,000
ECCN: EAR99
HTSUS: 8536.69.8000
