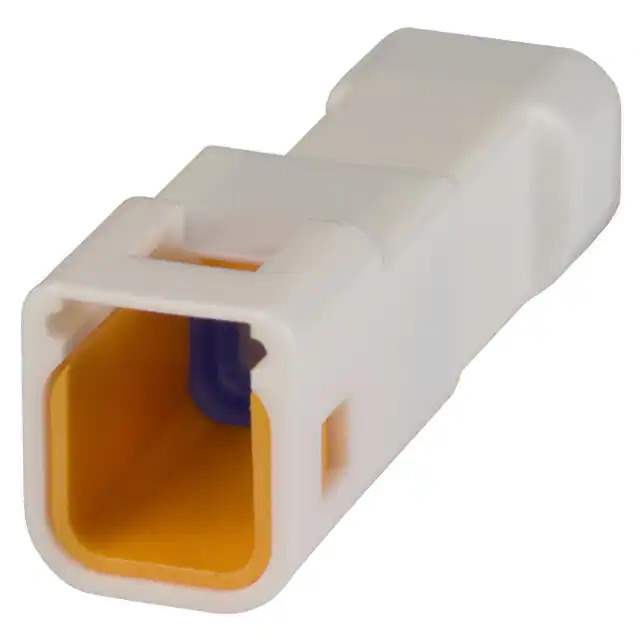

Same model may have multiple batches, images only for reference.

02T-JWPF-VSLE-S

Name: 02T-JWPF-VSLE-S
Brand: JST Sales America Inc.
SKU: 849583
Availability: InStock
Rating: 4.84 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	02T-JWPF-VSLE-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 2POS 2.00MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	JWPF
Package	Bulk
Product Status	Active
Connector Type	Plug
Contact Type	Male Pin
Number of Positions	2
Pitch	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	Natural
Features	JIS C 0920 Grade Level 7
Temperature Range - Operating	-55°C ~ 85°C
Note	Contacts Not Included
Base Product Number	02T-JWPF
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	849583-02T-JWPF-VSLE-S
Ultra Librarian 3D Model	Ultra Librarian 02T-JWPF-VSLE-S CAD Model

Alternative Products

Description

The 849583-02T-JWPF-VSLE-S is a rectangular connector housing from the JWPF series.

Connector Type: Plug
Positions: 2
Pitch: 0.079" (2.00mm)
Color: Natural
Grade Level: JIS C 0920 Grade Level 7
Contact Material: Brass
Temperature Range: -55°C to 85°C
Mounting Type: Free Hanging (In-Line)
Termination Method: Crimp
Contacts Included: No
Packaging: Bulk
Standard Package: 1,000 pcs
