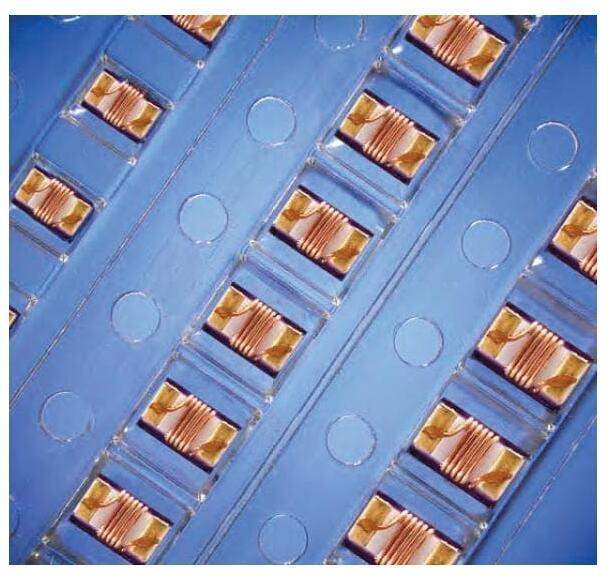

Same model may have multiple batches, images only for reference.
L-15WR33GV4E Johanson Technology
Same model may have multiple batches, images only for reference.

L-15WR33GV4E

Part No L-15WR33GV4E
Manufacturer Johanson Technology Inc.
Catalog RF Inductors - SMD
Description RF Inductors - SMD PLEASE SEE GLOBAL MFG PN: LRW0805WGR33GG001E
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Johanson
Category RF Inductors - SMD
Type Multilayer
Package / Case 0805 (2012 metric)
Shielding Unshielded
Inductance 330 nH
Tolerance 2 %
Maximum DC Current 300 mA
Maximum DC Resistance 220 mOhms
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Q Minimum 60
Self Resonant Frequency 11 GHz
Termination Standard
Length 2 mm
Width 1.25 mm
Core Material Ceramic
Case Code - in 0805
Case Code - mm 2012
Ultra Librarian 3D Model Ultra Librarian L-15WR33GV4E CAD Model

Description

L-15WR33GV4E is a high-performance wire-wound chip inductor with a low-loss ceramic body, ideal for power applications. With a compact design and robust construction, it provides excellent inductance stability and high-Q performance. It is available in a variety of sizes and is ideal for both commercial and automotive applications.
