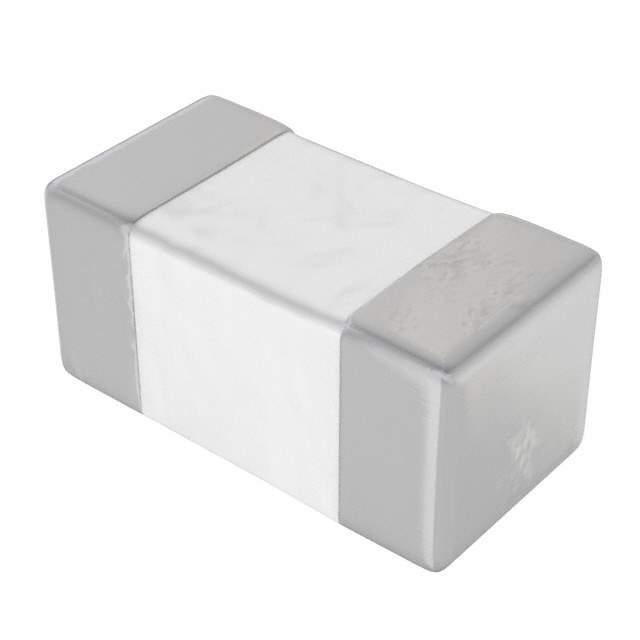

Same model may have multiple batches, images only for reference.

L-07C8N2JV6T

Name: L-07C8N2JV6T
Brand: Johanson Technology Inc.
SKU: 1327360
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	L-07C8N2JV6T
Manufacturer	Johanson Technology Inc.
Catalog	Fixed Inductors
Description	FIXED IND 8.2NH 250MA 400MOHM SM / 8.2 nH Unshielded Multilayer Inductor 250 mA 400mOhm Max 0402 (1005 Metric)
Datasheet	L-07C8N2JV6T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Johanson Technology Inc.
Packaging	Reel - TR
Type	Multilayer
Material - Core	Ceramic
Inductance	8.2 nH
Tolerance	±5%
Current Rating (Amps)	250 mA
Shielding	Unshielded
DC Resistance (DCR)	400mOhm Max
Q @ Freq	8 @ 100MHz
Frequency - Self Resonant	4.6GHz
Temperature Range - Operating	-55°C ~ 100°C
Inductance Frequency - Test	100 MHz
Mounting	Surface Mount
Case / Package	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.024" (0.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	L07C8N2JV6T,712-1420-6,712-1420-2,712-1420-1
Standard Package	10,000
Win Source Part Number	1327360-L-07C8N2JV6T
Ultra Librarian 3D Model	Ultra Librarian L-07C8N2JV6T CAD Model

Alternative Products

Description

The Johanson Technology Inc. 1327360-L-07C8N2JV6T is a fixed inductor that comes in a reel package.

Type: Multilayer
Shielding: Unshielded
Size/Dimension: 0.039 inches in length and 0.020 inches in width
Inductance: 8.2 nH
Height: 0.024 inches when seated
Standard Package: 10,000
Mounting: Surface
Tolerance: ±5%
Material-Core: Ceramic
Q @ Freq: 8 @ 100MHz
Frequency Self-Resonant: 4.6GHz
DC Resistance (DCR): 400mOhm max
Supplier Device Package: 0402 (1005 Metric)
Temperature Range: -55°C to 100°C
ECCN: EAR99
Inductance Frequency Test: 100MHz
REACH Status: REACH unaffected
HTSUS: 8504.50.8000
