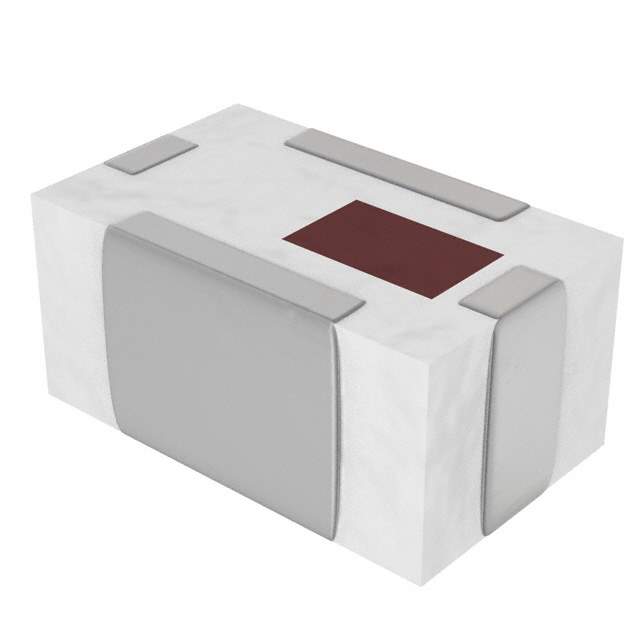

5515BP15C975E Real Image
Same model may have multiple batches, images only for reference.

5515BP15C975E

Part No 5515BP15C975E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description RF FILTER BAND PASS 5.5GHZ 0805 / 5.5GHz Center Frequency Band Pass RF Filter (Radio Frequency) 975MHz Bandwidth 2dB 0805 (2012 Metric), 4 PC Pad
Datasheet
5515BP15C975E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr Johanson Technology Inc.
Package Tape & Reel
Frequency 5.5GHz Center
Bandwidth 975MHz
Filter Type Band Pass
Insertion Loss 2dB
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 4 PC Pad
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 712-1136-2,712-1136-1,712-1136-6,5515BP15C975
Standard Package 4,000
Win Source Part Number 1125656-5515BP15C975E
Ultra Librarian 3D Model Ultra Librarian 5515BP15C975E CAD Model

Description

The Johanson Technology Inc. 1125656-5515BP15C975E is an RF filter that belongs to the bandpass type of filters.

  • Filter Type: Bandpass
  • Mounting: SMD (SMT)
  • Frequency: 5.5GHz Center
  • Insertion Loss: 2dB
  • Bandwidth: 975MHz
  • Package/Case: 0805 (2012 Metric), 4 PC Pad
  • Height (Max): 0.041" (1.05mm)
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Standard Package: 4,000
