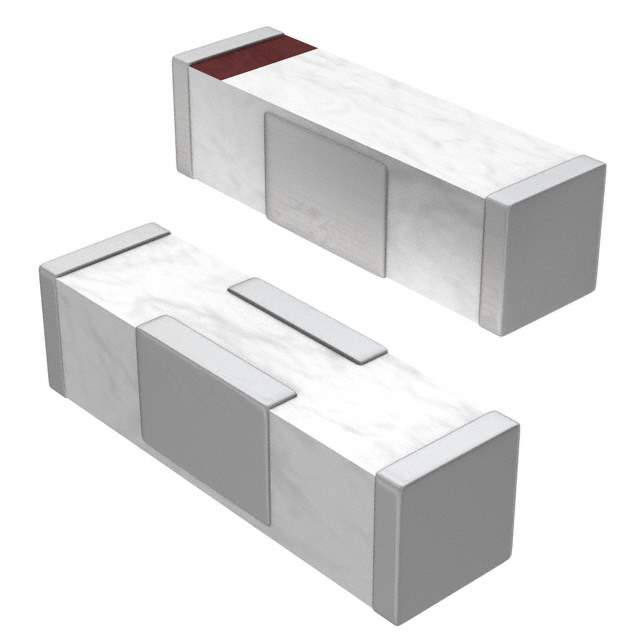

2450AT43B100E

Part No 2450AT43B100E
Manufacturer Johanson Technology Inc.
Catalog RF Antennas
Description ANTENNA CHIP 2.4GHZ
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Johanson Technology Inc.
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss -9.5dB
Gain 1.3dBi
Maximum Power Dissipation 2W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Applications Bluetooth, Wi-Fi, WLAN
Win Source Part Number 8170-2450AT43B100E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 2450AT43B100E CAD Model

Description

Product Overview

Designed for optimal wireless communication, the 2450AT43B100E is a reliable chip antenna suited for high-demand environments requiring robust data transfer capabilities.

Features and Benefits

  • Frequency Range: 2400-2500 MHz
  • Exceptional Signal Integrity: Reduces transmission errors
  • Compact and Lightweight: Ideal for small form factor devices
  • High Durability: Maintains performance in varied conditions

Applications

  • Smartphones
  • Wireless Communication Modules
  • Automotive Connectivity
  • Industrial IoT Devices

Additional Details

The 2450AT43B100E is crafted to meet high performance standards, providing clarity and consistency in communication. Its minimal weight adds to its appeal for integration in portable gadgets and other compact devices.
