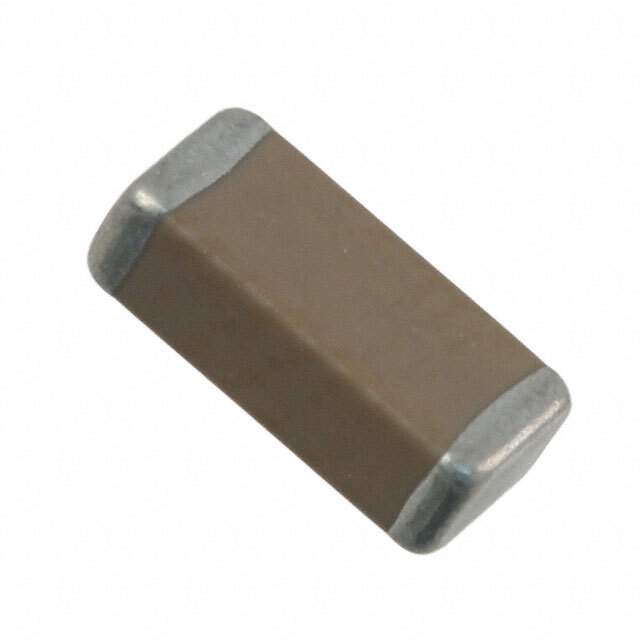

202R29W102KV4E Real Image
Same model may have multiple batches, images only for reference.

202R29W102KV4E

Part No 202R29W102KV4E
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV X7R 1808
Datasheet
202R29W102KV4E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Johanson Dielectrics Inc.
Packaging Reel - TR
Status Active
Capacitance 1000pF
Tolerance ±10%
Voltage Rating 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C to 125°C
Features High Voltage
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.189" L x 0.080" W (4.80mm x 2.03mm)
Thickness (Max) 0.085" (2.16mm)
Win Source Part Number 052391-202R29W102KV4E
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Commercial, Industrial, Lighting, Power Management
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian 202R29W102KV4E CAD Model

Description

Product Description

The 202R29W102KV4E is a versatile ceramic capacitor ideal for use in general-purpose and high-frequency applications. Its compact design allows for space-saving installation without compromising performance.

Features and Benefits

  • Rated Voltage: 25V
  • Capacitance: 1000pF
  • Compact size for efficient space utilization
  • Low dissipation factor for improved efficiency

Applications

  • Voltage multiplier circuits
  • Bypass and decoupling applications
  • Signal coupling and storage applications
  • Consumer electronics

Additional Details

The 202R29W102KV4E offers high reliability and robust performance, making it suitable for a wide range of circuit designs. Its low-profile construction is advantageous for space-constrained environments.
